TG-APC93 Series

Catalog

THERM PAD 300MMX300MM GRAY

Part	Shelf Life	Thermal Conductivity	Color	Shape	Outline [y]	Outline [x]	Type	Thickness	Thickness	Material
t-Global Technology TG-APC93-300-300-1.0-0	24 Months	2 W/m-K	Gray	Square	300 mm	300 mm	Conductive Pad Sheet	0.0394 "	1 mm	Non-Silicone
t-Global Technology TG-APC93-24-21.01-3.0-0	24 Months	2 W/m-K	Gray	Rectangular	21.01 mm	24 mm	Conductive Pad Sheet	0.118 in	3 mm	Non-Silicone
t-Global Technology TG-APC93-19.5-12.7-2.0-0	24 Months	2 W/m-K	Gray	Rectangular	12.7 mm	19.5 mm	Conductive Pad Sheet	0.079 in	2 mm	Non-Silicone

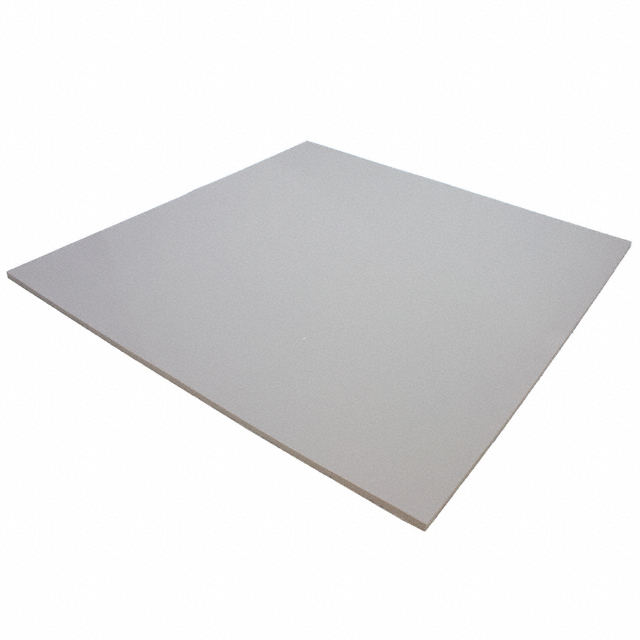

t-Global Technology TG-APC93-320-320-5.0-0	24 Months	2 W/m-K	Gray	Square	320 mm	320 mm	Conductive Pad Sheet	0.197 in	5 mm	Non-Silicone
t-Global Technology TG-APC93-24-21.01-5.0-0	24 Months	2 W/m-K	Gray	Rectangular	21.01 mm	24 mm	Conductive Pad Sheet	0.197 in	5 mm	Non-Silicone
t-Global Technology TG-APC93-150-150-2.5-0	24 Months	2.1 W/m-K	Gray	Square	150 mm	150 mm	Conductive Pad Sheet	0.098 in	2.489 mm	Non-Silicone
t-Global Technology TG-APC93-19.5-12.7-3.0-0	24 Months	2 W/m-K	Gray	Rectangular	12.7 mm	19.5 mm	Conductive Pad Sheet	0.118 in	3 mm	Non-Silicone
t-Global Technology TG-APC93-19.5-12.7-1.0-0	24 Months	2 W/m-K	Gray	Rectangular	12.7 mm	19.5 mm	Conductive Pad Sheet	0.0394 "	1 mm	Non-Silicone

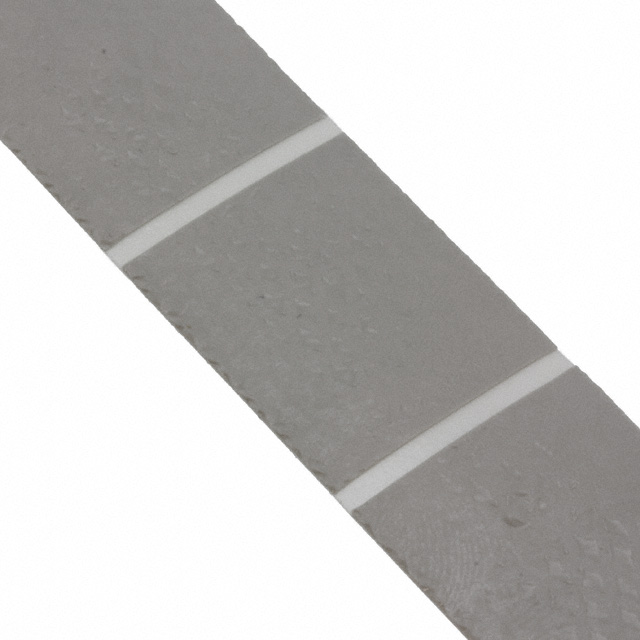

t-Global Technology TG-APC93-10-10-1.0-0	24 Months	2 W/m-K	Gray	Square	10 mm	10 mm	Conductive Pad Sheet	0.0394 "	1 mm	Non-Silicone
t-Global Technology TG-APC93-100-100-3.0-0	24 Months	2 W/m-K	Gray	Square	100 mm	100 mm	Conductive Pad Sheet	0.118 in	3 mm	Non-Silicone
