ATTINY24 Series

Manufacturer: Atmel

Catalog

IC MCU 8BIT 2KB FLASH 14DIP

Part	Connectivity	RAM Size	Speed	EEPROM Size	Core Processor	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Oscillator Type	Core Size	Mounting Type	Number of I/O	Data Converters	Package / Case	Package / Case	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Program Memory Type	Peripherals	Program Memory Size	Package / Case	Supplier Device Package
Atmel ATTINY24A-PU	USI	128 x 8	20 MHz	128 x 8	AVR	1.8 V	5.5 V	Internal	8-Bit	Through Hole	12	A/D 8x10b	14-DIP	0.3 in	7.62 mm	85 C	-40 ¯C	FLASH	Brown-out Detect/Reset POR PWM Temp Sensor WDT	2 KB
Atmel ATTINY24-20SSUR	USI	128 x 8	20 MHz	128 x 8	AVR	2.7 V	5.5 V	Internal	8-Bit	Surface Mount	12	A/D 8x10b	14-SOIC			85 C	-40 ¯C	FLASH	Brown-out Detect/Reset POR PWM Temp Sensor WDT	2 KB	0.154 in 3.9 mm

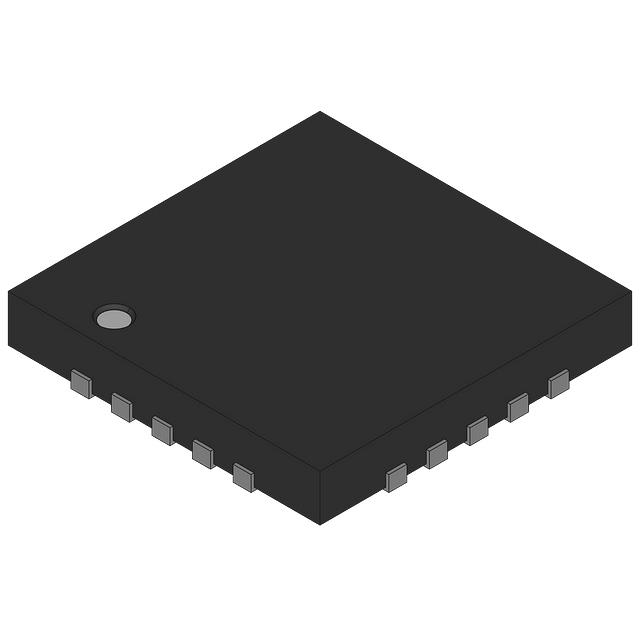

Atmel ATTINY24A-MMHR	USI	128 x 8	20 MHz	128 x 8	AVR	1.8 V	5.5 V	Internal	8-Bit	Surface Mount	12	A/D 8x10b	20-VFQFN Exposed Pad			85 C	-40 ¯C	FLASH	Brown-out Detect/Reset POR PWM Temp Sensor WDT	2 KB		20-VQFN (3x3)
Atmel ATTINY24V-10MU	USI	128 x 8	10 MHz	128 x 8	AVR	1.8 V	5.5 V	Internal	8-Bit	Surface Mount	12	A/D 8x10b	20-WFQFN Exposed Pad			85 C	-40 ¯C	FLASH	Brown-out Detect/Reset POR PWM Temp Sensor WDT	2 KB		20-QFN-EP (4x4)
Atmel ATTINY24A-CCU	USI	128 x 8	20 MHz	128 x 8	AVR	1.8 V	5.5 V	Internal	8-Bit	Surface Mount	12	A/D 8x10b	15-UFBGA			85 C	-40 ¯C	FLASH	Brown-out Detect/Reset POR PWM Temp Sensor WDT	2 KB		15-UFBGA (3x3)
Atmel ATTINY24-20SSU	USI	128 x 8	20 MHz	128 x 8	AVR	2.7 V	5.5 V	Internal	8-Bit	Surface Mount	12	A/D 8x10b	14-SOIC			85 C	-40 ¯C	FLASH	Brown-out Detect/Reset POR PWM Temp Sensor WDT	2 KB	0.154 in 3.9 mm
