R16100 Series

Catalog

N / STRAIGHT PLUG CLAMP TYPE CAB

Part	Body Material	Insertion Loss	Dielectric Material	Operating Temperature [Max]	Operating Temperature [Min]	Mating Cycles	Center Contact Plating	Voltage Rating	Body Finish	Shield Termination	Mounting Type	Impedance	Number of Ports	Cable Group	Connector Style	Connector Type	Fastening Type	Contact Termination	Center Contact Material	Frequency - Max [Max]	Ingress Protection	Housing Color
Radiall USA, Inc. R161008000W	Brass	0.15 dB	Polytetrafluoroethylene (PTFE)	155 C	-55 C	500	Gold	850 V	White Bronze	Clamp	Free Hanging (In-Line)	50 Ohms	1	141 142 223 400 RG-58	N Type	Plug Male Pin	Threaded	Solder	Brass	11 GHz	IP67 - Dust Tight Waterproof	Silver
Radiall USA, Inc. R161006000W	Brass	0.15 dB	Polytetrafluoroethylene (PTFE)	155 C	-55 C	500	Gold	850 V	White Bronze	Clamp	Free Hanging (In-Line)	50 Ohms	1	141 142 223 400 RG-58	N Type	Plug Male Pin	Threaded	Solder	Brass	11 GHz	IP67 - Dust Tight Waterproof	Silver

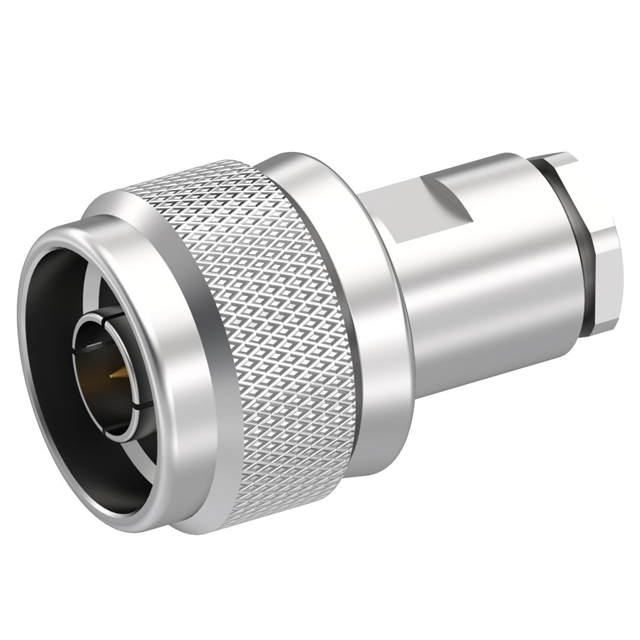

Radiall USA, Inc. R161008000	Brass	0.15 dB	Polytetrafluoroethylene (PTFE)	155 C	-55 C	500	Gold	850 V	White Bronze	Clamp	Free Hanging (In-Line)	50 Ohms	1	141 142 223 400 RG-58	N Type	Plug Male Pin	Threaded	Solder	Brass	11 GHz	IP67 - Dust Tight Waterproof	Silver
Radiall USA, Inc. R161004000W	Brass	0.15 dB	Polytetrafluoroethylene (PTFE)	155 C	-55 C	500	Gold	250 V	White Bronze	Clamp	Free Hanging (In-Line)	50 Ohms	1	187 188 316 316 Double Braid RG-179	N Type	Plug Male Pin	Threaded	Solder	Brass	11 GHz	IP67 - Dust Tight Waterproof	Silver
Radiall USA, Inc. R161006000	Brass	0.15 dB	Polytetrafluoroethylene (PTFE)	155 C	-55 C	500	Gold	850 V	White Bronze	Clamp	Free Hanging (In-Line)	50 Ohms	1	141 142 223 400 RG-58	N Type	Plug Male Pin	Threaded	Solder	Brass	11 GHz	IP67 - Dust Tight Waterproof	Silver
