HW-14-10 Series

Manufacturer: Samtec Inc.

Catalog

CONN HDR 28POS 0.1 STACK SMD

PartColorContact Finish Thickness - Post (Mating)Contact Finish Thickness - Post (Mating)Number of PositionsMounting TypeLength - Overall PinLength - Overall PinLength - Post (Mating) [x]Length - Post (Mating) [x]Row Spacing [x]Row SpacingNumber of RowsTerminationPitch [x]Pitch [x]Contact Finish - Post (Mating)Length - Stack Height [x]Length - Stack Height [x]Length - Stack Height [z]Length - Stack Height [z]Length - TailLength - Tail [x]Length - Overall Pin [x]Length - Tail
Samtec Inc.
HW-14-10-F-D-394-SM
Black
3 Áin
0.076 Ám
28
Surface Mount
19.431 mm
0.765 in
9.423 mm
0.371 in
0.1 in
2.54 mm
2
Solder
2.54 mm
0.1 in
Gold
0.394 in
10.008 mm
Samtec Inc.
HW-14-10-L-D-500-SM-A
Black
10 Áin
0.25 Ám
28
Surface Mount
19.431 mm
0.765 in
6.731 mm
0.265 in
0.1 in
2.54 mm
2
Solder
2.54 mm
0.1 in
Gold
0.5 in
12.7 mm
HW-14-10-T-S-578-SM-A
Samtec Inc.

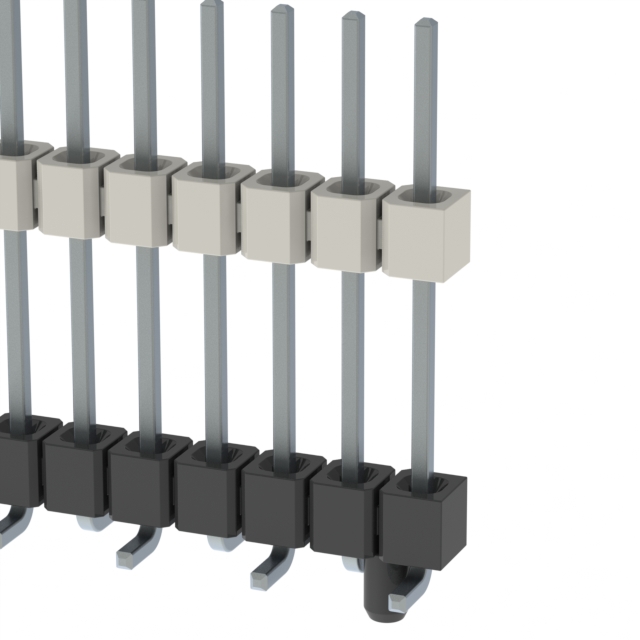

HW-14-10-T-S-578-SM-A
Black
14
Surface Mount
19.431 mm
0.765 in
4.75 mm
0.187 in
1
Solder
2.54 mm
0.1 in
Tin
14.681 mm
0.578 in
Product Image
Samtec Inc.
HW-14-10-G-D-405-210
Black
10 Áin
0.25 Ám
28
Through Hole
21.082 mm
5.791 mm
0.215 in
0.1 in
2.54 mm
2
Solder
2.54 mm
0.1 in
Gold
0.405 in
10.287 mm
5.334 mm
0.21 in
0.83 in
Samtec Inc.
HW-14-10-G-S-591-110
Black
10 Áin
0.25 Ám
14
Through Hole
21.082 mm
3.277 mm
0.129 in
1
Solder
2.54 mm
0.1 in
Gold
15.011 mm
0.591 in
2.8 mm
0.83 in
0.11 in
Samtec Inc.
HW-14-10-G-D-670-SM-A
Black
10 Áin
0.25 Ám
28
Surface Mount
19.431 mm
0.765 in
2.413 mm
0.095 in
0.1 in
2.54 mm
2
Solder
2.54 mm
0.1 in
Gold
0.67 in
17.018 mm
Samtec Inc.
HW-14-10-F-D-550-SM
Black
3 Áin
0.076 Ám
28
Surface Mount
19.431 mm
0.765 in
5.791 mm
0.215 in
0.1 in
2.54 mm
2
Solder
2.54 mm
0.1 in
Gold
0.55 in
13.97 mm
Samtec-HW-14-10-G-D-468-SM Connector Headers and PCB Receptacles Conn Board Stacker HDR 28 POS 2.54mm Solder ST Top Entry SMD Tube
Samtec Inc.
HW-14-10-G-D-468-SM
Black
10 Áin
0.25 Ám
28
Surface Mount
19.431 mm
0.765 in
7.544 mm
0.297 in
0.1 in
2.54 mm
2
Solder
2.54 mm
0.1 in
Gold
0.468 in
11.887 mm
Samtec Inc.
HW-14-10-T-D-600-SM-A
Black
28
Surface Mount
19.431 mm
0.765 in
4.191 mm
0.165 in
0.1 in
2.54 mm
2
Solder
2.54 mm
0.1 in
Tin
0.6 in
15.24 mm
Samtec Inc.
HW-14-10-G-D-490-SM-A
Black
10 Áin
0.25 Ám
28
Surface Mount
19.431 mm
0.765 in
6.985 mm
0.275 in
0.1 in
2.54 mm
2
Solder
2.54 mm
0.1 in
Gold
0.49 in
12.446 mm
