FR02C061 Series
Manufacturer: JAE Electronics
Beta
⌘K

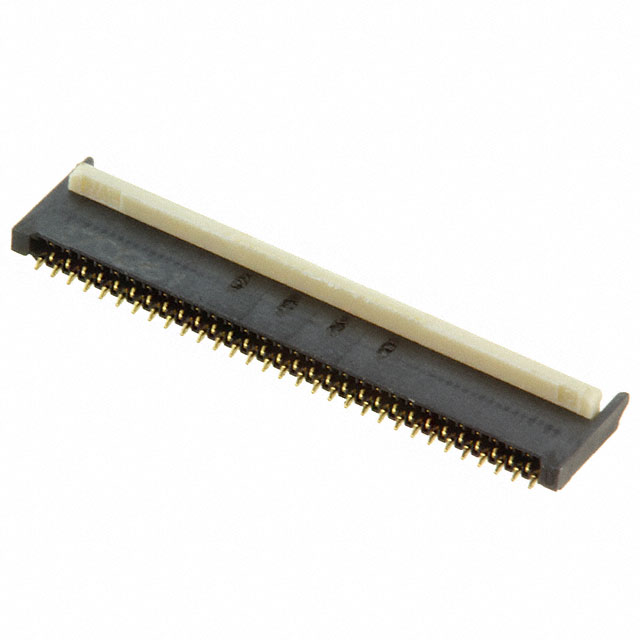

CONN FPC 61POS 0.2MM R/A
| Part | Current Rating (Amps) | Actuator Color | Housing Color | Locking Feature | Termination | Contact Material | Features | Connector/Contact Type | Contact Finish | Flat Flex Type | Housing Material | Actuator Material | Cable End Type | Number of Positions | Height Above Board | Height Above Board | Voltage Rating | Pitch | Pitch | Mounting Type | FFC, FCB Thickness [custom] | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JAE Electronics | 0.25 A | Natural | Black | Backlock Flip Lock | Solder | Phosphor Bronze | Low Insertion Force (LIF) | Contacts Top and Bottom | Gold | FPC | Plastic | Plastic | Tabbed or Tapered | 61 | 0.032 " | 0.81 mm | 50 V | 0.2 mm | 0.008 in | Right Angle Surface Mount | 0.2 mm | 85 °C | -40 C |
