725-110 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FML 110POS 0.100

Part	Material - Insulation	Termination Rows [custom]	Contact Finish Thickness	Contact Finish Thickness	Card Type	Mounting Type	Read Out	Number of Positions/Bay/Row	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows [custom]	Number of Positions	Contact Finish	Gender	Pitch	Pitch	Contact Material	Contact Type	Termination	Color	Card Thickness [Max]	Card Thickness [Min]
EDAC Inc. 725-110-545-201	Polyester Thermoplastic	2	30 Áin	0.76 Ám	Non Specified - Dual Edge	Through Hole	Dual	55	-40 C	105 ░C	2	110	Gold	Female	0.1 "	2.54 mm	Copper Alloy	Cantilever	Press-Fit Wire Wrap	Black	0.07 in 1.78 mm	0.054 in 1.37 mm

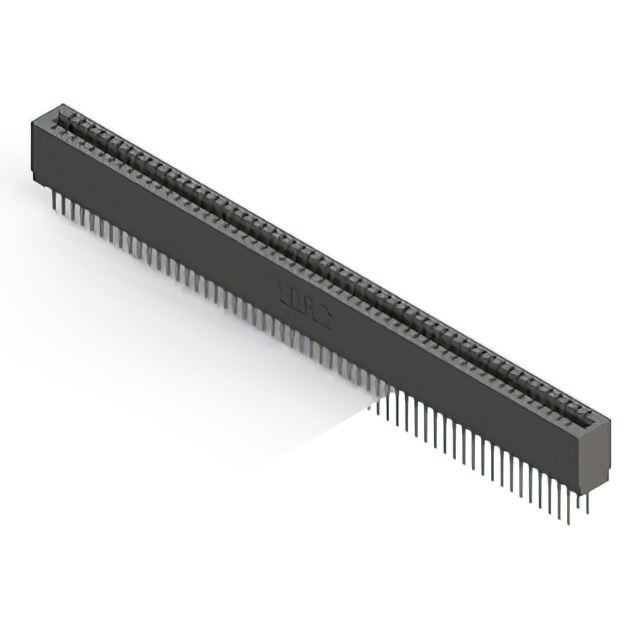

EDAC Inc. 725-110-522-201	Polyester Thermoplastic	2	30 Áin	0.76 Ám	Non Specified - Dual Edge	Through Hole	Dual	55	-40 C	105 ░C	2	110	Gold	Female	0.1 "	2.54 mm	Copper Alloy	Cantilever	Press-Fit	Black	0.07 in 1.78 mm	0.054 in 1.37 mm

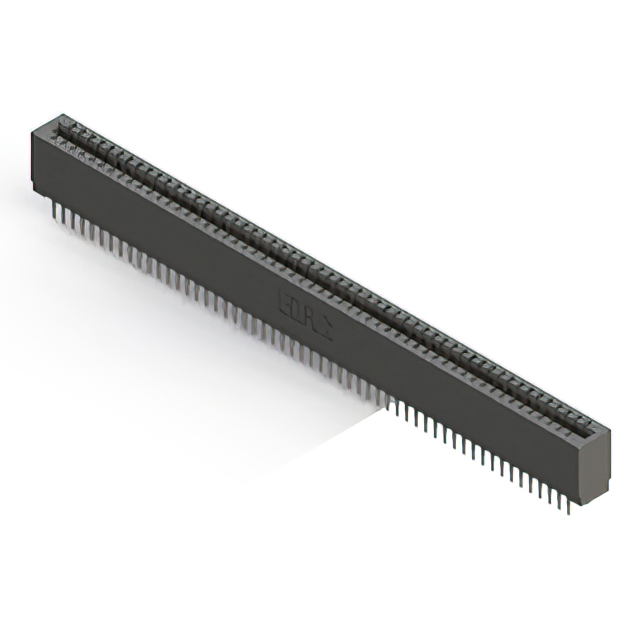

EDAC Inc. 725-110-520-201	Polyester Thermoplastic	2	30 Áin	0.76 Ám	Non Specified - Dual Edge	Through Hole	Dual	55	-40 C	105 ░C	2	110	Gold	Female	0.1 "	2.54 mm	Copper Alloy	Cantilever	Press-Fit	Black	0.07 in 1.78 mm	0.054 in 1.37 mm
