WP117 Series

Catalog

MULTI-COLOR LEDS RED GREEN 625 568NM DIFFUSED 10 8MCD

Part	Lens Size [y]	Lens Size [x]	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Supplier Device Package	Current - Test [custom]	Current - Test [custom]	Viewing Angle	Millicandela Rating [custom]	Millicandela Rating [custom]	Lens Style	Configuration	Wavelength - Peak	Color	Lens Color	Wavelength - Dominant	Lens Transparency	Voltage - Forward (Vf) (Typ)	Height (Max) [Max] [z]	Package / Case	Wavelength - Peak	Current - Test	Millicandela Rating [custom]	Wavelength - Dominant	Millicandela Rating

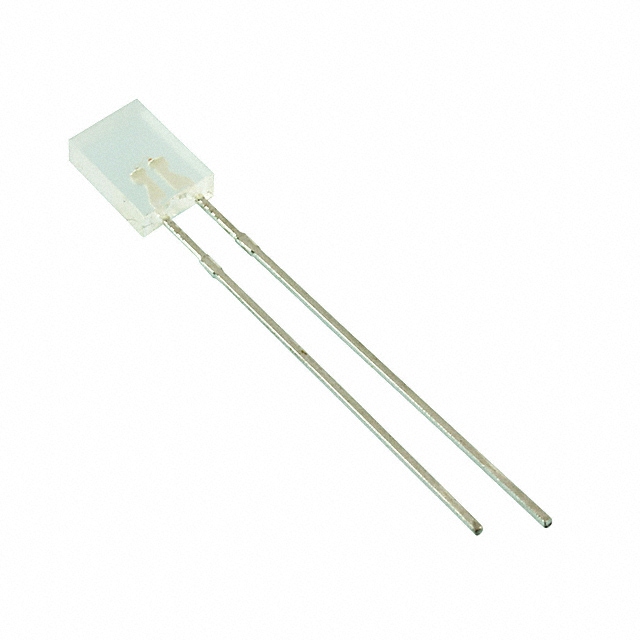

Kingbright WP117EGWT	2 mm	5 mm	Through Hole	2 mm	5 mm	Rectangular 2mmx5mm	20 mA	20 mA	110 °	6 mcd	4 mcd	Rectangle with Flat Top	Bidirectional	565 nm 627 nm	Green Red	White	568 nm 617 nm	Diffused	2 V 2.2 V	7 mm	Radial

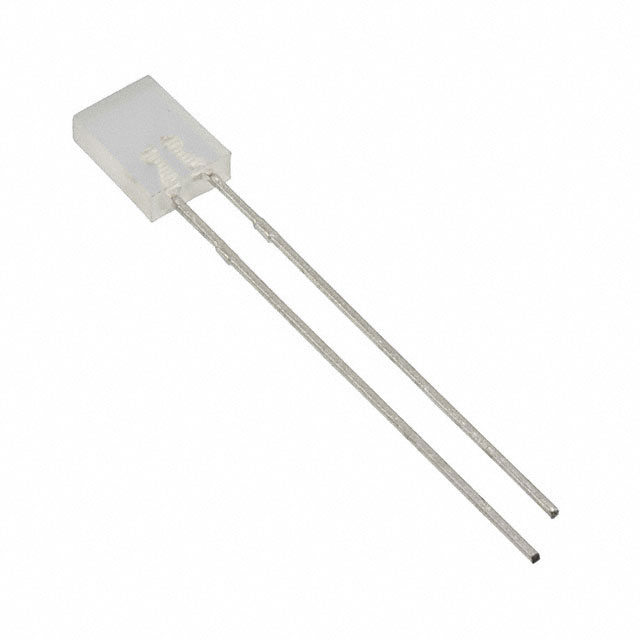

Kingbright WP117GYWT	2 mm	5 mm	Through Hole	2 mm	5 mm	Rectangular 2mmx5mm			110 °	6 mcd		Rectangle with Flat Top	Bidirectional		Green Yellow	White		Diffused	2.1 V 2.2 V	7 mm	Radial	565nm Green 590nm Yellow	20 mA 20 mA	4 mcd	568nm Green 588nm Yellow

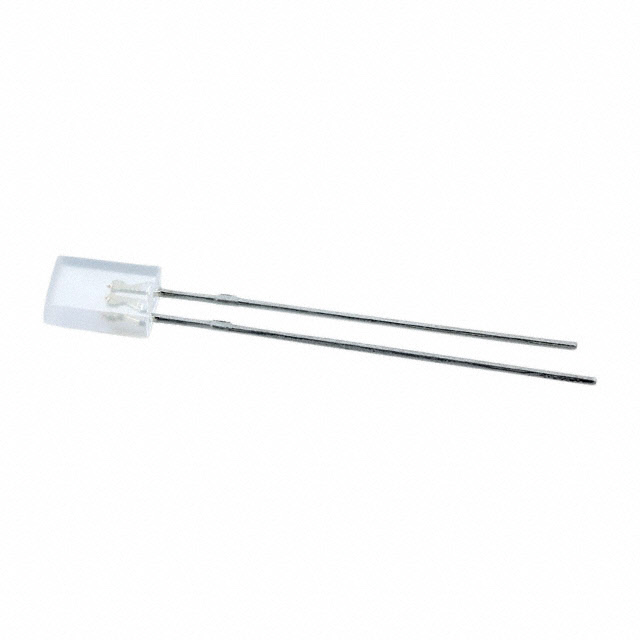

Kingbright WP117EYWT	2 mm	5 mm	Through Hole	2 mm	5 mm	Rectangular 2mmx5mm			110 °			Rectangle with Flat Top	Bidirectional	590 nm 627 nm	Red Yellow	White		Diffused	2 V 2.1 V	7 mm	Radial		20 mA 20 mA		588nm Yellow 617nm Red	4 mcd 4 mcd
