SS22SB Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH SLIDE DPDT 0.4VA 28V
| Part | Actuator Material | Electrical Life | Switch Travel | Mechanical Life | Switch Function | Current Rating (Amps) | Contact Timing | Actuator Length [x] | Mounting Type | Actuator Type | Circuit | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Voltage Rating - DC | Voltage Rating - AC | Termination Style | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

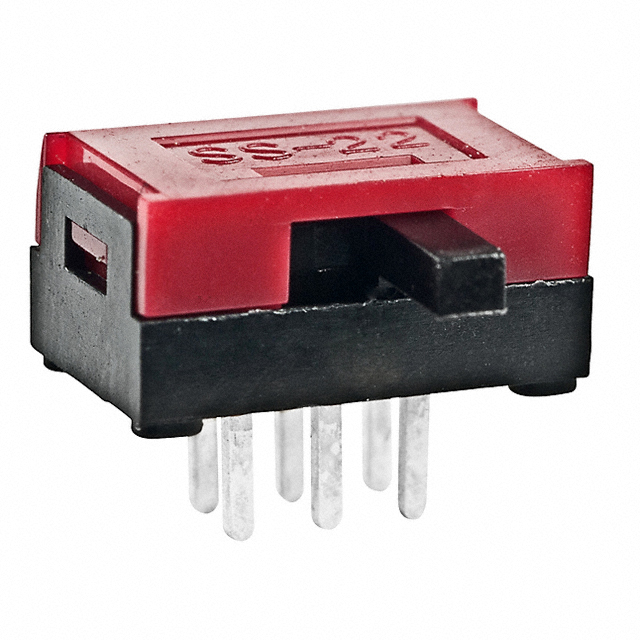

 NKK Switches | Polyamide (PA) Nylon | 10000 Cycles | 2 mm | 10000 Steps | On-On | 0.4 VA | Shorting (MBB) | 2.5 mm | Right Angle Through Hole | Standard | DPDT | -15 °C | 60 °C | Phosphor Bronze | 28 V | 28 V | PC Pin | Gold |

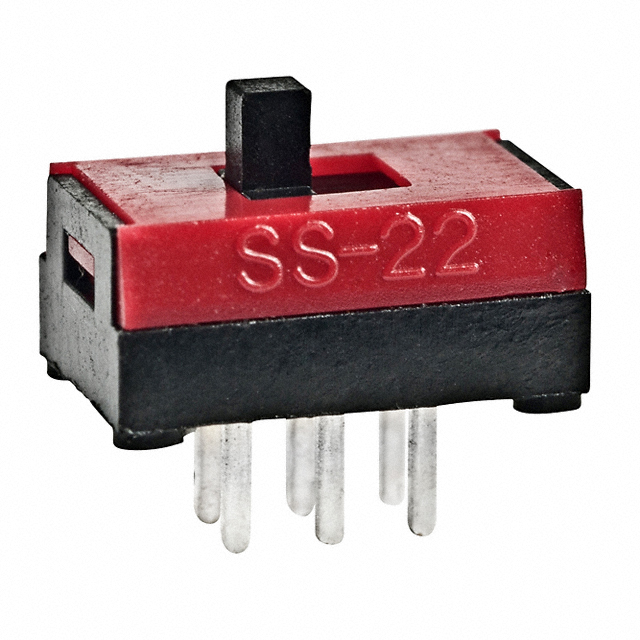

 NKK Switches | Polyamide (PA) Nylon | 10000 Cycles | 2 mm | 10000 Steps | On-On | 100 mA | Shorting (MBB) | 2 mm | Through Hole | Standard | DPDT | -15 °C | 60 °C | Phosphor Bronze | 30 V | PC Pin | Silver |
