IBDN25P Series
Manufacturer: Belden Inc.
Beta
⌘K

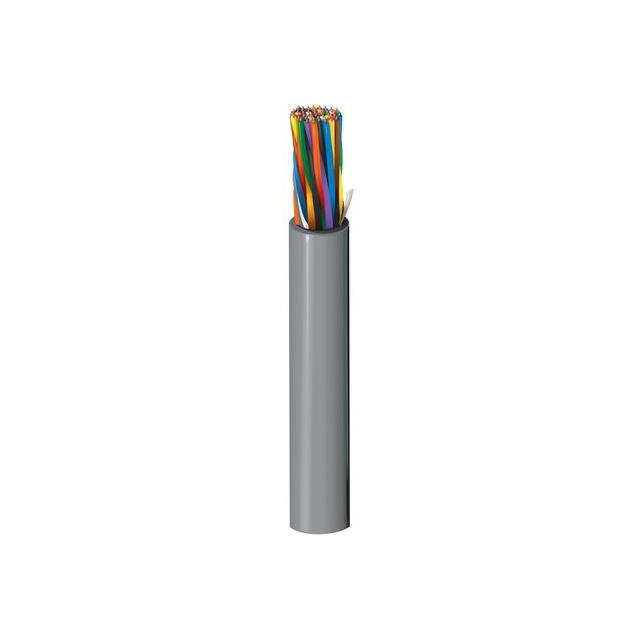

CAT5E 25PR U/UTP CMP CUT
| Part | Conductor Insulation | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Material | Length [x] | Length [x] | Voltage | Ratings | Cable Type | Jacket Color | Number of Conductors | Usage | Jacket (Insulation) Material | Conductor Strand | Operating Temperature [Max] | Operating Temperature [Min] | Features | Wire Gauge | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Fluorinated Ethylene-Propylene (FEP) | 12.14 mm | 0.478 " | Copper Bare | 300 mm | 1 ' | 300 VDC | UL Style CMP | Multi-Pair Cat5e | Gray | 50 | Network | Fluorinated Ethylene-Propylene (FEP) Plenum | Solid | 60 °C | -40 C | Rip Cord | 24 AWG | ||
Belden Inc. | Fluorinated Ethylene-Propylene (FEP) | 12.14 mm | 0.478 " | Copper Bare | 300 VDC | UL Style CMP | Multi-Pair Cat5e | Gray | 50 | Network | Fluorinated Ethylene-Propylene (FEP) Plenum | Solid | 60 °C | -40 C | Rip Cord | 24 AWG | 304.8 m | 1000 ft |
