PRB.M0 Series
Manufacturer: LEMO
Beta
⌘K

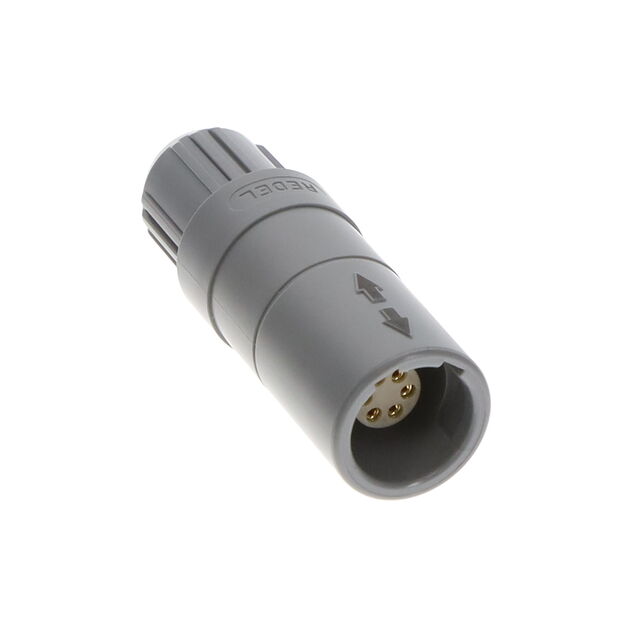

CONN RCPT FMALE 6P GOLD SLDR CUP
| Part | Fastening Type | Shell Size - Insert | Connector Type | Shell Material | Backshell Material, Plating | Cable Opening [Max] | Cable Opening [Min] | Cable Opening [Max] | Cable Opening [Min] | Contact Finish - Mating | Insert Material | Color | Features | Ingress Protection | Shielding | Orientation | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Applications | Primary Material | Mounting Type | Current Rating (Amps) | Cable Opening [Max] | Cable Opening |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Detent Lock Push-Pull | M06 | Receptacle Female Sockets | Polysulfone (PSU) | Polysulfone (PSU) | 6.5 mm | 0.209 in | 0.256 in | 5.3 mm | Gold | Polyetheretherketone (PEEK) | Gray | Backshell | IP50 - Dust Protected | Unshielded | B | 150 °C | -50 °C | 6 | Automotive Industrial Medical Testing Equipment & Measurement | Plastic | Free Hanging (In-Line) | 6 A | |||
Detent Lock Push-Pull | M08 | Receptacle Female Sockets | Polysulfone (PSU) | Polysulfone (PSU) | 0.106 in | 0.154 in | 2.7 mm | Gold | Polyetheretherketone (PEEK) | Gray | Backshell | IP50 - Dust Protected | Unshielded | B | 150 °C | -50 °C | 8 | Automotive Industrial Medical Testing Equipment & Measurement | Plastic | Free Hanging (In-Line) | 5 A | 3.9 mm | |||
 LEMO | Detent Lock Push-Pull | M06 | Receptacle Female Sockets | Polysulfone (PSU) | Polysulfone (PSU) | 0.157 in | 0.205 in | Gold | Polyetheretherketone (PEEK) | Gray | Backshell | IP50 - Dust Protected | Unshielded | B | 150 °C | -50 °C | 6 | Automotive Industrial Medical Testing Equipment & Measurement | Plastic | Free Hanging (In-Line) | 6 A | 4 mm 5.2 mm | |||
Detent Lock Push-Pull | M08 | Receptacle Female Sockets | Polysulfone (PSU) | Polysulfone (PSU) | 0.157 in | 0.205 in | Gold | Polyetheretherketone (PEEK) | Gray | Backshell | IP50 - Dust Protected | Unshielded | B | 150 °C | -50 °C | 8 | Automotive Industrial Medical Testing Equipment & Measurement | Plastic | Free Hanging (In-Line) | 5 A | 4 mm 5.2 mm | ||||
LEMO | Detent Lock Push-Pull | M08 | Receptacle Female Sockets | Polysulfone (PSU) | Polysulfone (PSU) | 0.106 in | 0.154 in | 2.7 mm | Gold | Polyetheretherketone (PEEK) | Gray Yellow | Backshell | IP50 - Dust Protected | Unshielded | B | 150 °C | -50 °C | 8 | Automotive Industrial Medical Testing Equipment & Measurement | Plastic | Free Hanging (In-Line) | 5 A | 3.9 mm | ||
LEMO | Detent Lock Push-Pull | M04 | Receptacle Female Sockets | Polyetherimide (PEI) | Polyetherimide (PEI) | 0.106 in | 0.154 in | 2.7 mm | Gold | Polyetheretherketone (PEEK) | Black | Backshell | IP50 - Dust Protected | Unshielded | B | 170 °C | -50 °C | 4 | Automotive Industrial Medical Testing Equipment & Measurement | Plastic | Free Hanging (In-Line) | 8 A | 3.9 mm |
