ECQ-E2563 Series

Manufacturer: Panasonic Electronic Components

Catalog

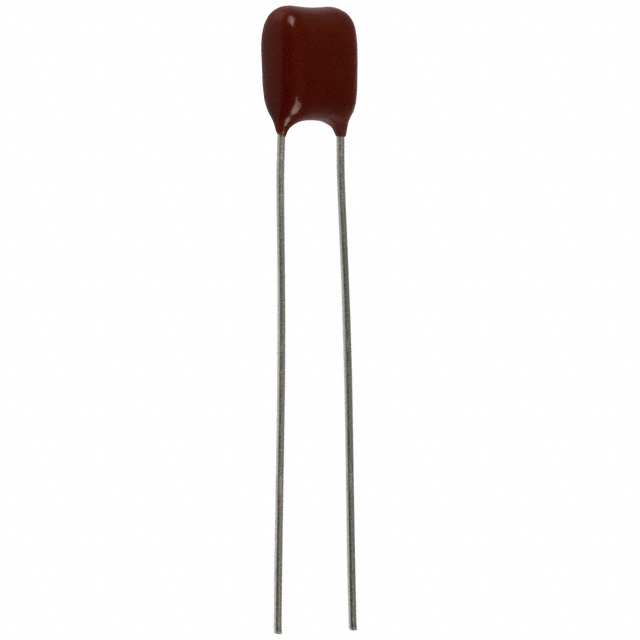

CAP FILM 0.056UF 5% 250VDC RAD

Part	Capacitance	Mounting Type	Package / Case	Applications	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Dielectric Material	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Voltage Rating - DC	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Lead Spacing	Lead Spacing	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]
Panasonic Electronic Components ECQ-E2563JB3	56000 pF	Through Hole	Radial	General Purpose	0.5 in	12.7 mm	Polyester Metallized	0.311 in	4.7 mm	0.185 in	7.9 mm	250 V	PC Pins	-40 C	105 ░C	5 %	0.197 "	5 mm
Panasonic Electronic Components ECQ-E2563KBB	56000 pF	Through Hole	Radial	General Purpose	0.5 in	12.7 mm	Polyester Metallized	0.311 in	4.7 mm	0.185 in	7.9 mm	250 V	PC Pins	-40 C	105 ░C	10 %	0.197 "	5 mm
Panasonic Electronic Components ECQ-E2563KS	56000 pF	Through Hole	Radial	General Purpose	0.354 in	9 mm	Polyester Metallized	0.492 "	5 mm	0.197 "	12.5 mm	250 V	PC Pins	-40 C	85 °C	10 %	0.394 in	10 mm
Panasonic Electronic Components ECQ-E2563RKF	56000 pF	Through Hole	Radial	General Purpose			Polyester Metallized					250 V	PC Pins	-40 C	105 ░C	10 %	0.295 in	7.5 mm	12.9 mm	0.508 in	4.80	0.189	0.406	10.30
Panasonic Electronic Components ECQ-E2563JF3	56000 pF	Through Hole	Radial	General Purpose			Polyester Metallized					250 V	PC Pins	-40 C	105 ░C	5 %	0.197 "	5 mm	12.9 mm	0.508 in	4.80	0.189	0.406	10.30
Panasonic Electronic Components ECQ-E2563KF9	56000 pF	Through Hole	Radial	General Purpose			Polyester Metallized					250 V	PC Pins	-40 C	105 ░C	10 %	0.197 "	5 mm	12.9 mm	0.508 in	4.80	0.189	0.406	10.30
Panasonic Electronic Components ECQ-E2563KFW	56000 pF	Through Hole	Radial	General Purpose			Polyester Metallized					250 V	PC Pins	-40 C	105 ░C	10 %	0.295 in	7.5 mm	12.9 mm	0.508 in	4.80	0.189	0.406	10.30
Panasonic Electronic Components ECQ-E2563JFB	56000 pF	Through Hole	Radial	General Purpose			Polyester Metallized					250 V	PC Pins	-40 C	105 ░C	5 %	0.295 in	7.5 mm	12.9 mm	0.508 in	4.80	0.189	0.406	10.30
