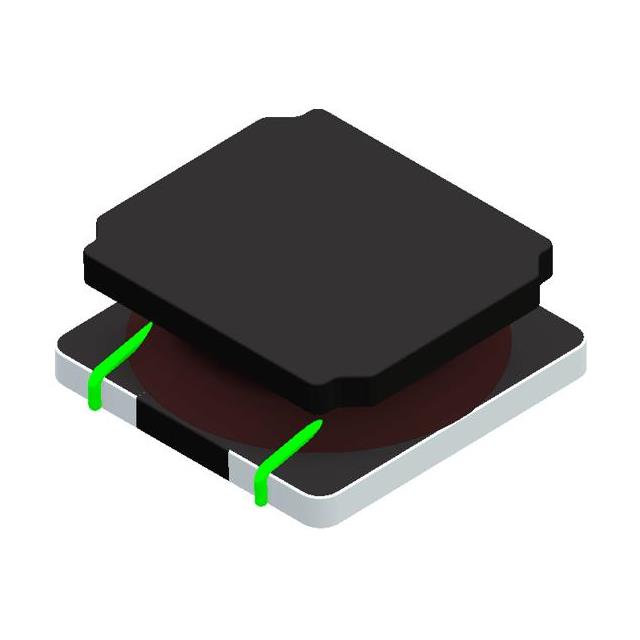

HPC4012TF Series
Manufacturer: TAI-TECH Advanced Electronics Co., Ltd.
Beta
⌘K
FIXED IND 2.2UH 2.2A 0.06OHM SMD
| Part | Supplier Device Package | Package / Case | Inductance | Shielding | Inductance Frequency - Test | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Mounting Type | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | DC Resistance (DCR) | Current Rating (Amps) | Current - Saturation (Isat) | Tolerance | Operating Temperature [Max] | Operating Temperature [Min] | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TAI-TECH Advanced Electronics Co., Ltd. | 1616 | 1616 (4040 Metric) | 2.2 µH | Shielded | 100 kHz | 1.2 mm | 0.047 " | Surface Mount | 0.157 " | 4 mm | 0.157 in | 4 mm | 60 mOhm | 2.2 A | 1.95 A | 20 % | 125 °C | -40 C | Wirewound |
TAI-TECH Advanced Electronics Co., Ltd. | 1616 | 1616 (4040 Metric) | 22 µH | Shielded | 100 kHz | 1.2 mm | 0.047 " | Surface Mount | 0.157 " | 4 mm | 0.157 in | 4 mm | 400 mOhm | 0.72 A | 0.6 A | 20 % | 125 °C | -40 C | Wirewound |
TAI-TECH Advanced Electronics Co., Ltd. | 1616 | 1616 (4040 Metric) | 10 µH | Shielded | 100 kHz | 1.2 mm | 0.047 " | Surface Mount | 0.157 " | 4 mm | 0.157 in | 4 mm | 180 mOhm | 1.3 A | 1 A | 20 % | 125 °C | -40 C | Wirewound |
TAI-TECH Advanced Electronics Co., Ltd. | 1616 | 1616 (4040 Metric) | 1 µH | Shielded | 100 kHz | 1.2 mm | 0.047 " | Surface Mount | 0.157 " | 4 mm | 0.157 in | 4 mm | 12 mOhm | 2.5 A | 3.3 A | 20 % | 125 °C | -40 C | Wirewound |
TAI-TECH Advanced Electronics Co., Ltd. | 1616 | 1616 (4040 Metric) | 3.3 µH | Shielded | 100 kHz | 1.2 mm | 0.047 " | Surface Mount | 0.157 " | 4 mm | 0.157 in | 4 mm | 70 mOhm | 1.9 A | 1.6 A | 20 % | 125 °C | -40 C | Wirewound |
