RP405 Series

Catalog

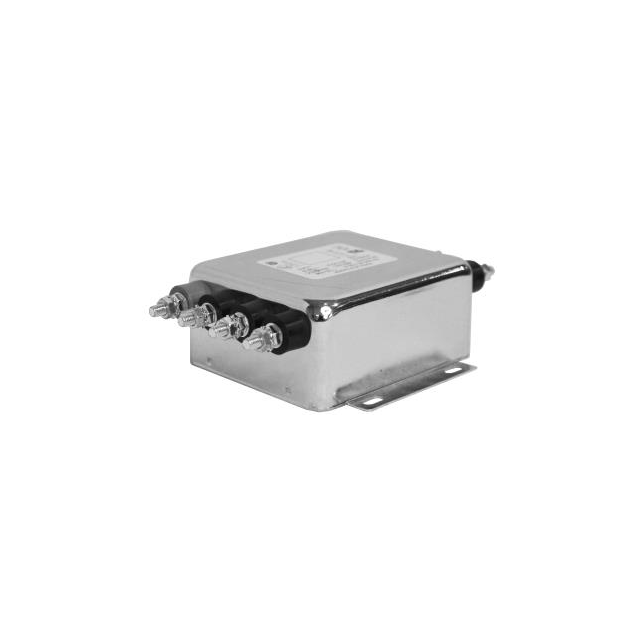

LINE FILTER 480VAC 30A CHASSIS

Part	Mounting Type	Applications	Voltage - Rated AC	Voltage - Rated AC (Phase to Ground/Neutral)	Current	Filter Type	Operating Temperature [Max]	Operating Temperature [Min]	Frequency - Operating [Max]	Frequency - Operating [Min]	Termination Style	Approval Agency	Configuration
Astrodyne TDI RP405-30-1000-W	Chassis Mount	General Purpose	480 V	3.5 kV	30 A	Three Phase (Wye)	100 °C	-25 °C	60 Hz	50 Hz	Wire Leads	CE CSA cURus ENEC SEMKO	Single Stage
Astrodyne TDI RP405-6-10-W	Chassis Mount	General Purpose	480 V	3.5 kV	6 A	Three Phase (Wye)	100 °C	-25 °C	60 Hz	50 Hz	Wire Leads	CE CSA cURus ENEC SEMKO	Single Stage
Astrodyne TDI RP405-10-1000-S	Chassis Mount	General Purpose	480 V	3.5 kV	10 A	Three Phase (Wye)	100 °C	-25 °C	60 Hz	50 Hz	Threaded Post (M5)	CE CSA cURus ENEC SEMKO	Single Stage
Astrodyne TDI RP405-10-0-W	Chassis Mount	General Purpose	480 V	3.5 kV	10 A	Three Phase (Wye)	100 °C	-25 °C	60 Hz	50 Hz	Wire Leads	CE CSA cURus ENEC SEMKO	Single Stage
Astrodyne TDI RP405-6-100-W	Chassis Mount	General Purpose	480 V	3.5 kV	6 A	Three Phase (Wye)	100 °C	-25 °C	60 Hz	50 Hz	Wire Leads	CE CSA cURus ENEC SEMKO	Single Stage
Astrodyne TDI RP405-20-100-W	Chassis Mount	General Purpose	480 V	3.5 kV	20 A	Three Phase (Wye)	100 °C	-25 °C	60 Hz	50 Hz	Wire Leads	CE CSA cURus ENEC SEMKO	Single Stage
Astrodyne TDI RP405-30-0-W	Chassis Mount	General Purpose	480 V	3.5 kV	30 A	Three Phase (Wye)	100 °C	-25 °C	60 Hz	50 Hz	Wire Leads	CE CSA cURus ENEC SEMKO	Single Stage
Astrodyne TDI RP405-30-10-W	Chassis Mount	General Purpose	480 V	3.5 kV	30 A	Three Phase (Wye)	100 °C	-25 °C	60 Hz	50 Hz	Wire Leads	CE CSA cURus ENEC SEMKO	Single Stage
Astrodyne TDI RP405-40-10-W	Chassis Mount	General Purpose	480 V	3.5 kV	40 A	Three Phase (Wye)	100 °C	-25 °C	60 Hz	50 Hz	Wire Leads	CE CSA cURus ENEC SEMKO	Single Stage
Astrodyne TDI RP405-40-0-C	Chassis Mount	General Purpose	480 V	3.5 kV	40 A	Three Phase (Wye)	100 °C	-25 °C	60 Hz	50 Hz	Terminal Block	CE CSA cURus ENEC SEMKO	Single Stage
