2834017 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

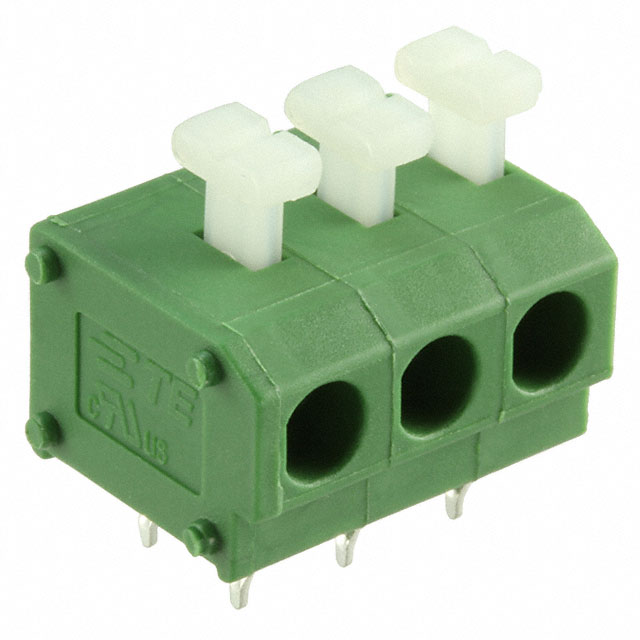

TERM BLK 3P SIDE ENT 3.81MM PCB
| Part | Mating Orientation | Current | Clamp Material - Plating | Features | Color | Number of Levels | Pitch [x] | Pitch [x] | Wire Termination | Mounting Type | Voltage | Wire Gauge [Min] | Wire Gauge [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material - Plating | Positions Per Level |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Horizontal with Board | 8 A | Stainless Steel | Interlocking (Side) | Green | 1 | 0.15 in | 3.81 mm | Screwless - Push Button Clamp | Through Hole | 300 V | 16 AWG | 20 AWG | -40 °C | 105 ░C | Copper Alloy - Tin Plated | 3 |
