041681 Series

Manufacturer: Molex

Catalog

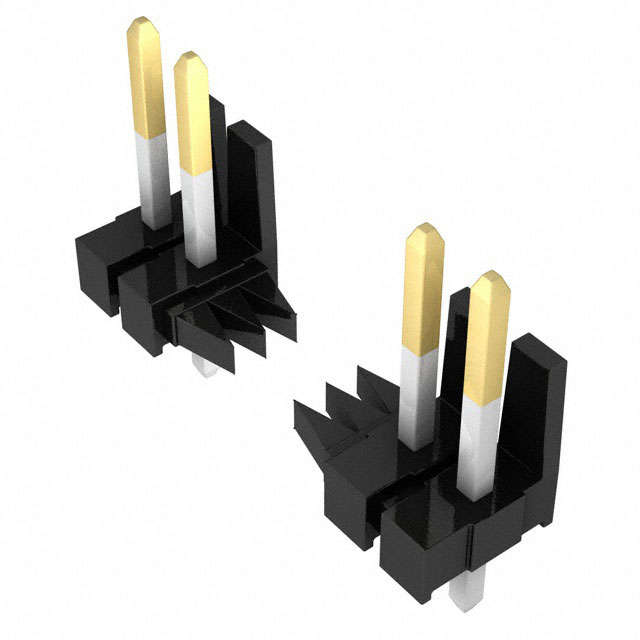

CONN HEADER VERT 15POS 3.96MM

Part	Contact Length - Post	Contact Length - Post	Contact Length - Mating	Contact Length - Mating	Fastening Type	Material Flammability Rating	Contact Type	Pitch - Mating	Pitch - Mating	Termination	Overall Contact Length	Overall Contact Length	Number of Rows	Insulation Material	Style	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Insulation Height	Insulation Height	Contact Finish - Mating	Applications	Connector Type	Mounting Type	Shrouding	Insulation Color	Contact Shape	Contact Finish - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions	Number of Positions Loaded
Molex 0416810011	0.172 in	4.37 mm	11.43 mm	0.45 in	Push-Pull	UL94 V-0	Male Pin	0.156 in	3.96 mm	Solder	0.75 in	19.05 mm	1	Polyester Glass Filled	Board to Board Cable	15 µin	0.38 µm	Brass	9.14 mm	0.36 in	Gold	Automotive General Purpose Industrial Medical Telecommunications	Breakaway Header	Through Hole	Shrouded - 1 Wall	Black	Square	Tin	2.54 µm	100 µin	15	All

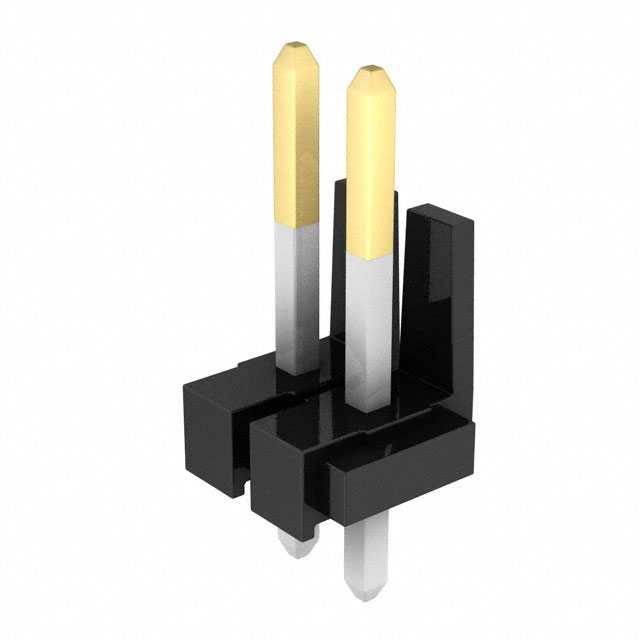

Molex 0416810001	0.172 in	4.37 mm	11.43 mm	0.45 in	Push-Pull	UL94 V-0	Male Pin	0.156 in	3.96 mm	Solder	0.75 in	19.05 mm	1	Polyester Glass Filled	Board to Board Cable	15 µin	0.38 µm	Brass	9.14 mm	0.36 in	Gold	Automotive General Purpose Industrial Medical Telecommunications	Breakaway Header	Through Hole	Shrouded - 1 Wall	Black	Square	Tin	2.54 µm	100 µin	2	All
Molex 0416810023	0.172 in	4.37 mm	11.43 mm	0.45 in	Push-Pull	UL94 V-0	Male Pin	0.156 in	3.96 mm	Solder	0.75 in	19.05 mm	1	Polyester Glass Filled	Board to Board Cable	15 µin	0.38 µm	Brass	9.14 mm	0.36 in	Gold	Automotive General Purpose Industrial Medical Telecommunications	Breakaway Header	Through Hole	Shrouded - 1 Wall	Black	Square	Tin	2.54 µm	100 µin	24	All
