M3AGK Series

Manufacturer: 3M (TC)

Catalog

IDC CABLE - MSC10K/MC10M/MCS10K

Part	Contact Finish	Shielding	Connector Type	Cable Termination	Pitch - Cable	Pitch - Cable	Number of Rows	Features	Number of Positions	Pitch - Connector	Pitch - Connector	Length [x]	Length [x]	Color	Contact Finish Thickness	Contact Finish Thickness	Length	Length	Length	Number of Positions	Length

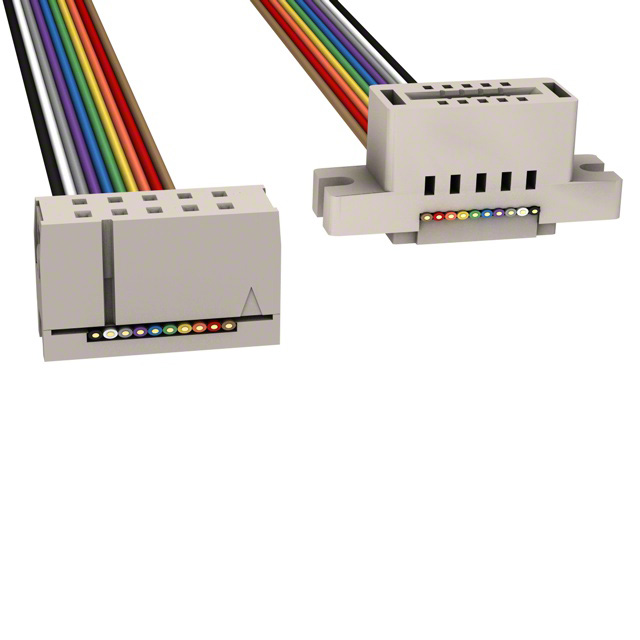

3M (TC) M3AGK-1036R	Gold	Unshielded	Socket to Card Edge	IDC	0.05 "	1.27 mm	2	Flange	10	0.1 in	2.54 mm	3 ft	914.4 mm	Multiple Ribbon	0.76 Ám	30 Áin

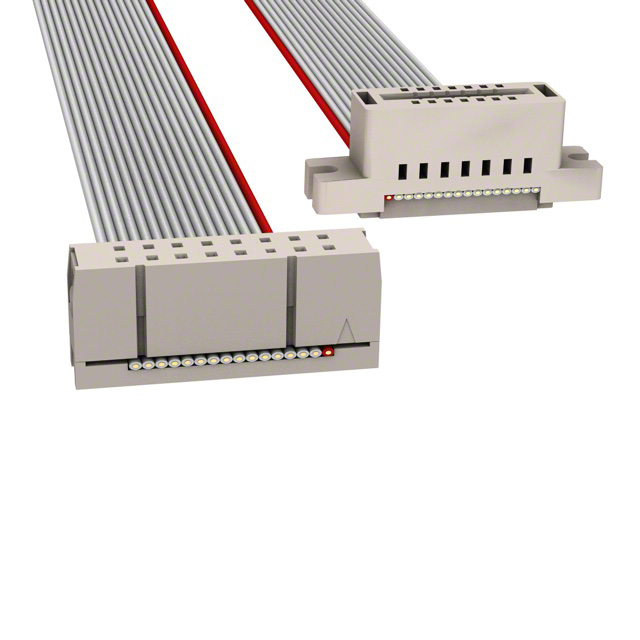

3M (TC) M3AGK-1606J	Gold	Unshielded	Socket to Card Edge	IDC	0.05 "	1.27 mm	2	Flange		0.1 in	2.54 mm				0.76 Ám	30 Áin	152.4 mm	6 "	0.5 '	16

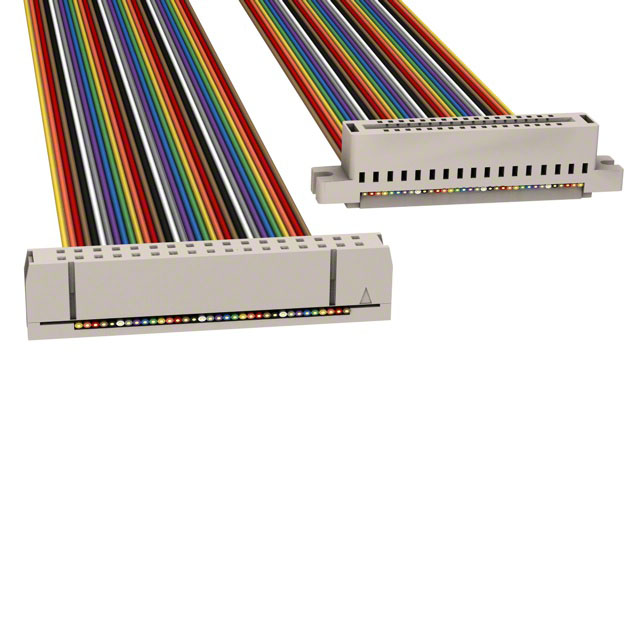

3M (TC) M3AGK-3436R	Gold	Unshielded	Socket to Card Edge	IDC	0.05 "	1.27 mm	2	Flange	34	0.1 in	2.54 mm	3 ft	914.4 mm	Multiple Ribbon	0.76 Ám	30 Áin
3M (TC) M3AGK-5040K	Gold	Unshielded	Socket to Card Edge	IDC	0.05 "	1.27 mm	2	Flange	50	0.1 in	2.54 mm	3.34 ft	1.02 m	Multiple Twisted Pair (Flat)	0.76 Ám	30 Áin
3M (TC) M3AGK-1640K	Gold	Unshielded	Socket to Card Edge	IDC	0.05 "	1.27 mm	2	Flange		0.1 in	2.54 mm	3.34 ft	1.02 m	Multiple Twisted Pair (Flat)	0.76 Ám	30 Áin				16

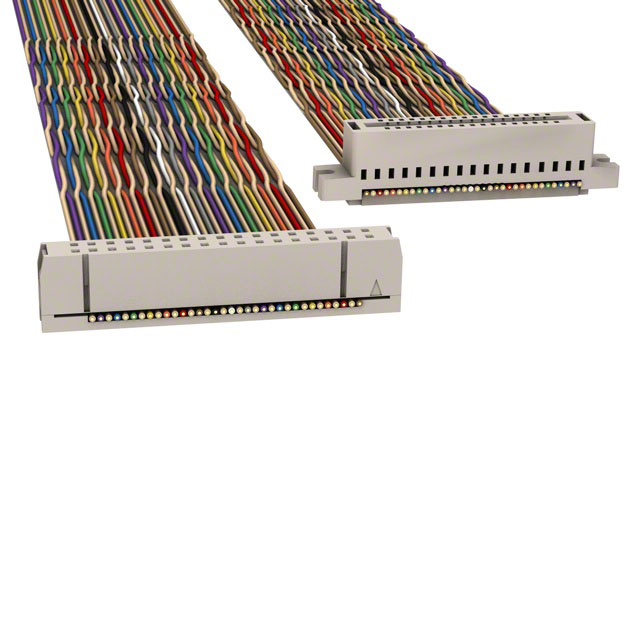

3M (TC) M3AGK-3440K	Gold	Unshielded	Socket to Card Edge	IDC	0.05 "	1.27 mm	2	Flange	34	0.1 in	2.54 mm	3.34 ft	1.02 m	Multiple Twisted Pair (Flat)	0.76 Ám	30 Áin

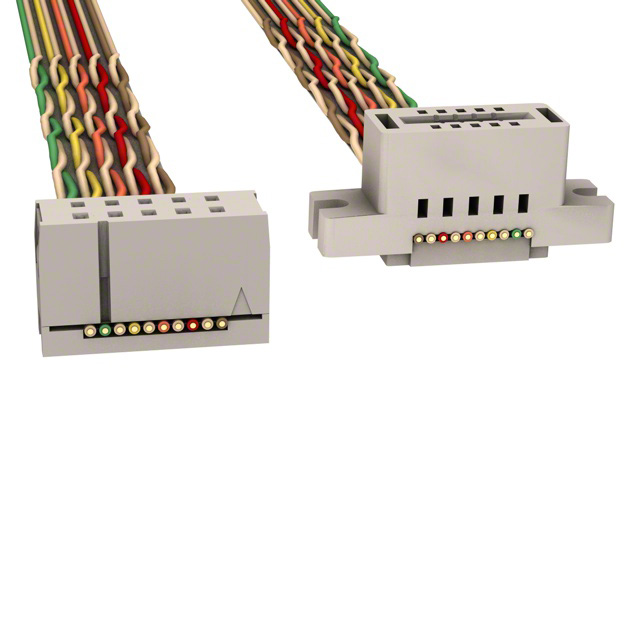

3M (TC) M3AGK-1020K	Gold	Unshielded	Socket to Card Edge	IDC	0.05 "	1.27 mm	2	Flange	10	0.1 in	2.54 mm			Multiple Twisted Pair (Flat)	0.76 Ám	30 Áin	508 mm				1.67 ft
3M (TC) M3AGK-3406R	Gold	Unshielded	Socket to Card Edge	IDC	0.05 "	1.27 mm	2	Flange	34	0.1 in	2.54 mm			Multiple Ribbon	0.76 Ám	30 Áin	152.4 mm	6 "	0.5 '
3M (TC) M3AGK-1618R	Gold	Unshielded	Socket to Card Edge	IDC	0.05 "	1.27 mm	2	Flange		0.1 in	2.54 mm	1.5 ft	457.2 mm	Multiple Ribbon	0.76 Ám	30 Áin				16

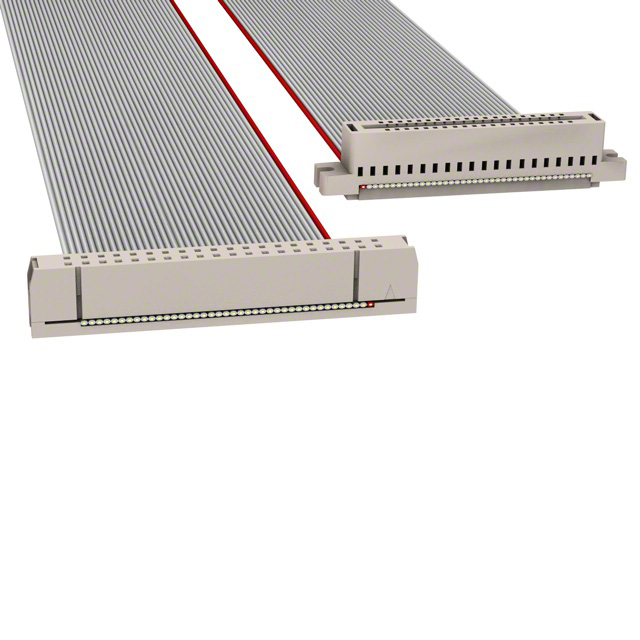

3M (TC) M3AGK-4018J	Gold	Unshielded	Socket to Card Edge	IDC	0.05 "	1.27 mm	2	Flange	40	0.1 in	2.54 mm	1.5 ft	457.2 mm		0.76 Ám	30 Áin
