AWHW2 14 Series
Manufacturer: Assmann WSW Components
Beta
⌘K

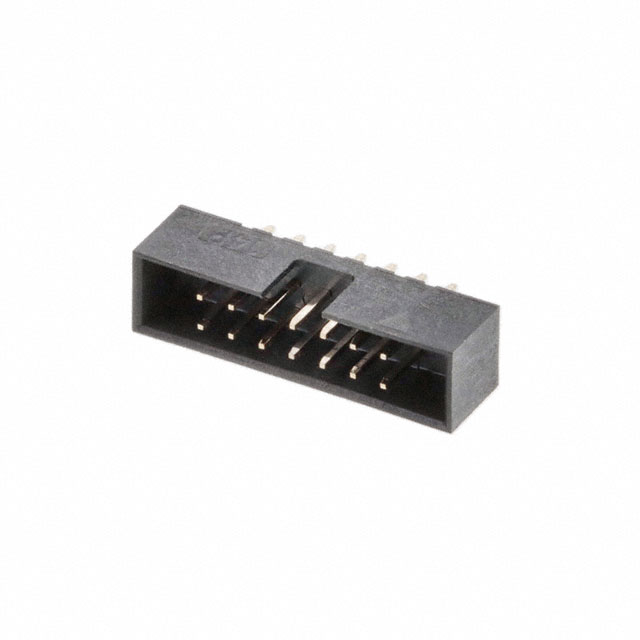

CONN HEADER VERT 14POS 2MM
| Part | Style | Contact Shape | Shrouding | Row Spacing - Mating | Row Spacing - Mating | Contact Type | Features | Number of Positions Loaded | Pitch - Mating | Pitch - Mating | Contact Length - Post [custom] | Contact Length - Post | Contact Material | Fastening Type | Termination | Insulation Color | Insulation Material | Mounting Type | Contact Length - Mating | Contact Length - Mating | Insulation Height | Insulation Height | Connector Type | Contact Finish Thickness - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Material Flammability Rating | Number of Rows [custom] | Current Rating (Amps) | Contact Finish - Mating | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Assmann WSW Components | Board to Cable/Wire | Square | Shrouded - 4 Wall | 2 mm | 0.079 in | Male Pin | Keying Slot | All | 0.079 " | 2 mm | 0.11 in | 2.79 mm | Brass | Push-Pull | Solder | Black | Glass Filled Nylon 9T Polyamide (PA9T) | Through Hole | 4 mm | 0.157 in | 5.74 mm | 0.226 in | Header | Flash | -40 C | 105 ░C | UL94 V-0 | 2 | 1.5 A | Gold | 14 |
