SFW15S Series

Catalog

CONN FFC FPC VERT 15POS 1MM SMD

Part	Housing Color	Mating Cycles	Termination	Mounting Type	Material Flammability Rating	FFC, FCB Thickness	Connector/Contact Type	Pitch	Pitch	Housing Material	Voltage Rating	Contact Material	Actuator Material	Operating Temperature [Min]	Operating Temperature [Max]	Flat Flex Type	Contact Finish	Height Above Board [z]	Height Above Board [z]	Number of Positions	Actuator Color	FFC, FCB Thickness [custom]	FFC, FCB Thickness [custom]	Locking Feature	Cable End Type
Amphenol ICC (FCI) SFW15S-2STME1LF	Brown	20	Solder	Surface Mount	UL94 V-0	0.33 mm	Contacts Vertical - 1 Sided	1 mm	0.039 in	Glass Filled Thermoplastic	100 V	Phosphor Bronze	Thermoplastic Glass Filled	-55 C	105 ░C	FFC FPC	Tin	0.209 in	5.3 mm	15

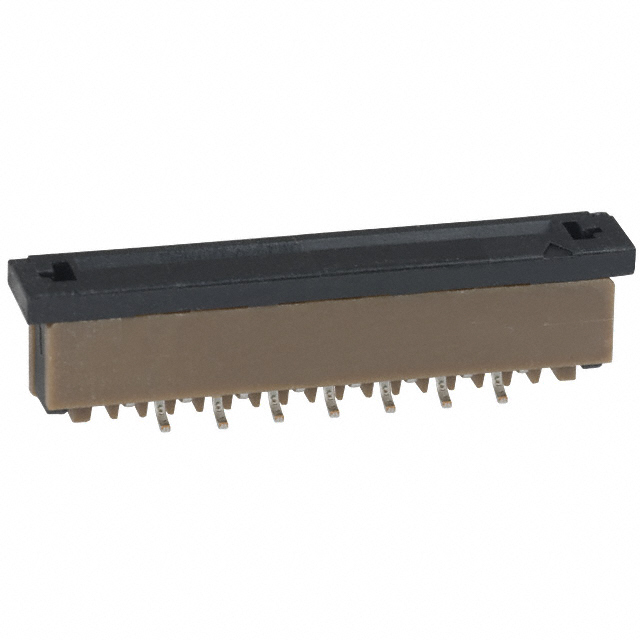

Amphenol ICC (FCI) SFW15S-2STE1	Brown	20	Solder	Surface Mount	UL94 V-0		Contacts Vertical - 1 Sided	1 mm	0.039 in	Glass Filled Thermoplastic	100 V	Phosphor Bronze	Thermoplastic Glass Filled	-55 C	85 °C	FFC FPC	Tin Alloy	0.209 in	5.3 mm	15	Black	0.3 mm	0.33 mm	Slide Lock	Straight Tapered
