SERL Series

Catalog

SWITCH PUSH SPDT 0.01A 24V

Part	Actuator Marking	Circuit	Illumination Type, Color	Switch Function	Voltage Rating - DC	Termination Style	Current Rating (Amps)	Color - Actuator/Cap	Electrical Life	Mounting Type	Type	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]

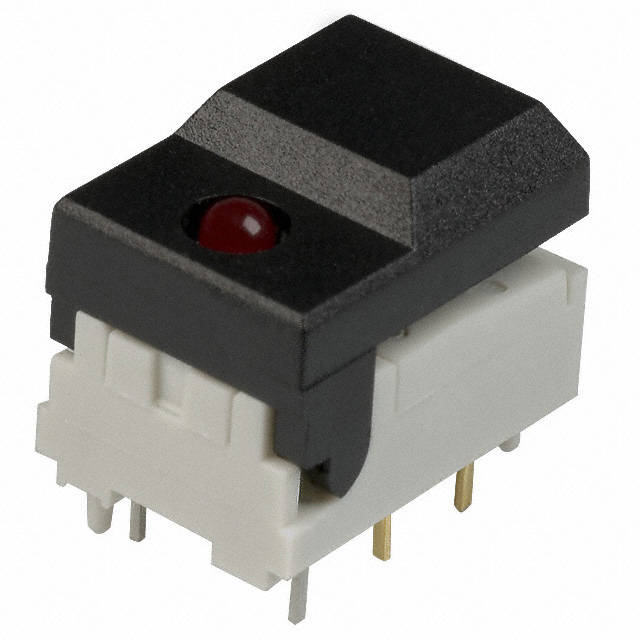

LITTELFUSE SERL BK RD 7.62 AU OA	No Marking	SPDT	LED Red	On-Mom	24 V	PC Pin	10 mA	Black	5000000 Cycles	Through Hole	Keyswitch Illuminated	Button Square	85 °C	-25 °C
LITTELFUSE SERL BK GN AU EE	No Marking	SPDT	Green LED	On-On	24 V	PC Pin	10 mA	Black	500000 Cycles	Through Hole	Keyswitch Illuminated	Button Square	85 °C	-25 °C

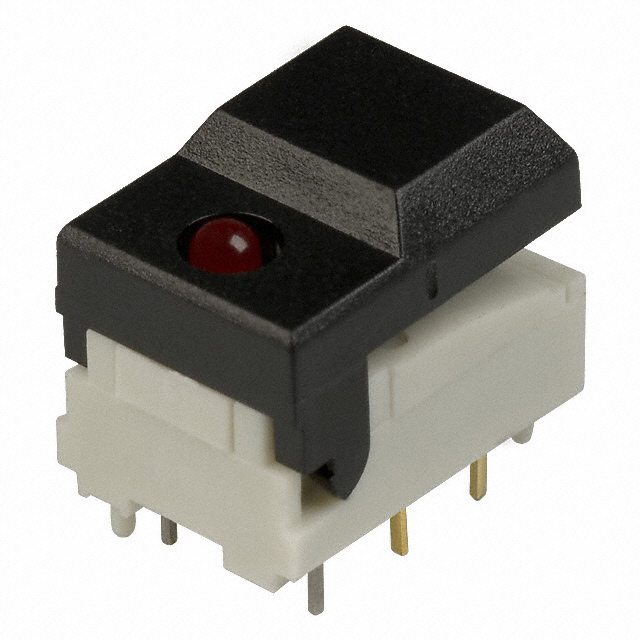

LITTELFUSE SERL BK RD 7.62 AU EE	No Marking	SPDT	LED Red	On-On	24 V	PC Pin	10 mA	Black	500000 Cycles	Through Hole	Keyswitch Illuminated	Button Square	85 °C	-25 °C

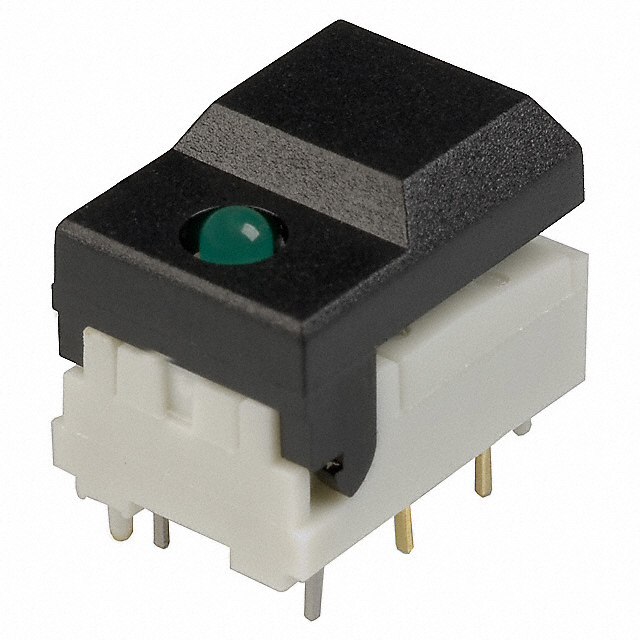

LITTELFUSE SERL BK GN 7.62 AU EE	No Marking	SPDT	Green LED	On-On	24 V	PC Pin	10 mA	Black	500000 Cycles	Through Hole	Keyswitch Illuminated	Button Square	85 °C	-25 °C
