NPTC071 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

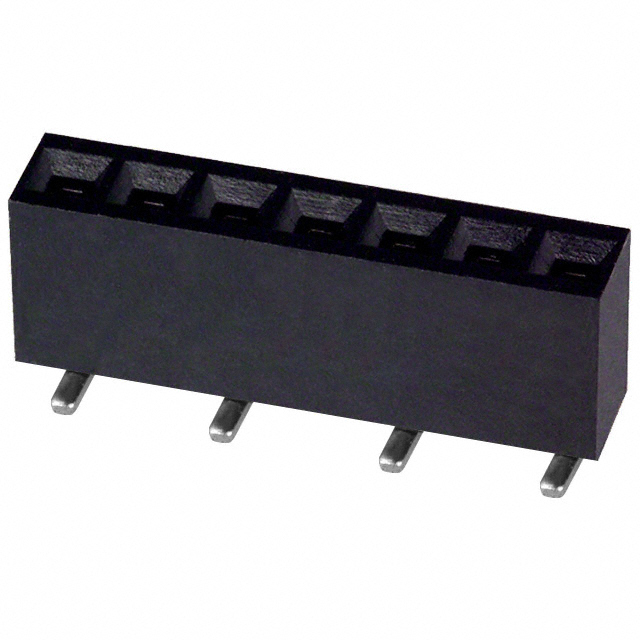

CONN HDR 7POS 0.1 TIN SMD
| Part | Insulation Material | Contact Material | Contact Shape | Number of Rows | Termination | Fastening Type | Number of Positions Loaded | Voltage Rating | Number of Positions | Pitch - Mating | Pitch - Mating | Insulation Height | Insulation Height | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Color | Material Flammability Rating | Mounting Type | Current Rating (Amps) | Contact Finish - Post | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Nylon 6T Polyamide (PA6T) | Phosphor Bronze | Square | 1 | Solder | Push-Pull | All | 250 V | 7 | 0.1 " | 2.54 mm | 0.28 in | 7.1 mm | Female Socket | -40 C | 105 ░C | Black | UL94 V-0 | Surface Mount | 3 A | Tin | Header Top or Bottom Entry |
