MPM3550 Series
Manufacturer: Monolithic Power Systems Inc.
Beta
⌘K

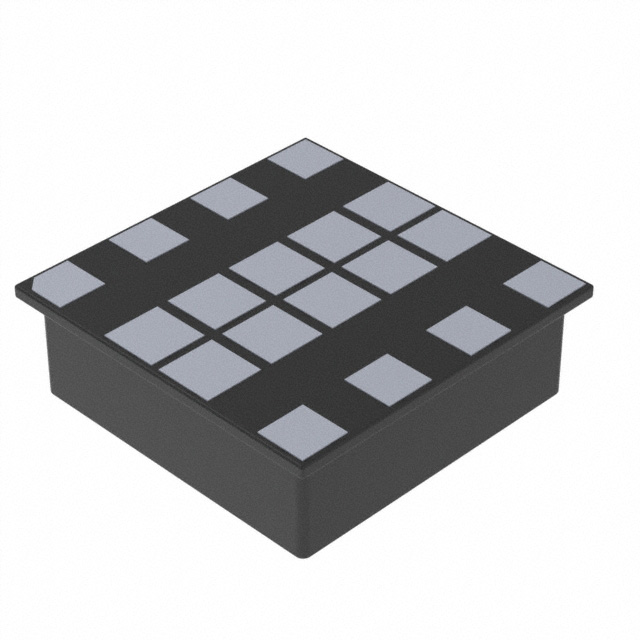

LGA 18/A°/NON-ISOLATED DC-DC POWER MODULE WITH INTEGRATED INDUCTOR 36V, 5A
| Part | Supplier Device Package | Package / Case | Mounting Type | Current - Output (Max) | Voltage - Input (Min) [Min] | Voltage - Output 1 [Min] | Voltage - Output 1 [Max] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Voltage - Input (Max) [Max] | Efficiency | Operating Temperature [Max] | Operating Temperature [Min] | Type | Number of Outputs | Features | Applications | Voltage - Output [Max] | Voltage - Output [Min] | Utilized IC / Part | Contents | Voltage - Input [Min] | Voltage - Input [Max] | Outputs and Type | Current - Output | Main Purpose |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Monolithic Power Systems Inc. | 18-LGA (12x12) | 18-BLGA Module | Surface Mount | 5 A | 4.5 V | 1 V | 12 V | 12 mm | 12 mm | 0.17 in | 0.47 " | 0.47 in | 4.2 mm | 36 V | 94.6 % | 125 °C | -40 C | Non-Isolated PoL Module | 1 | OCP OTP SCP UVLO | ITE (Commercial) | |||||||||
 Monolithic Power Systems Inc. | 12 V | 1 VDC | MPM3550E | Board(s) | 4.5 V | 36 V | 1 Non-Isolated Output | 5 A | DC/DC Converter |
