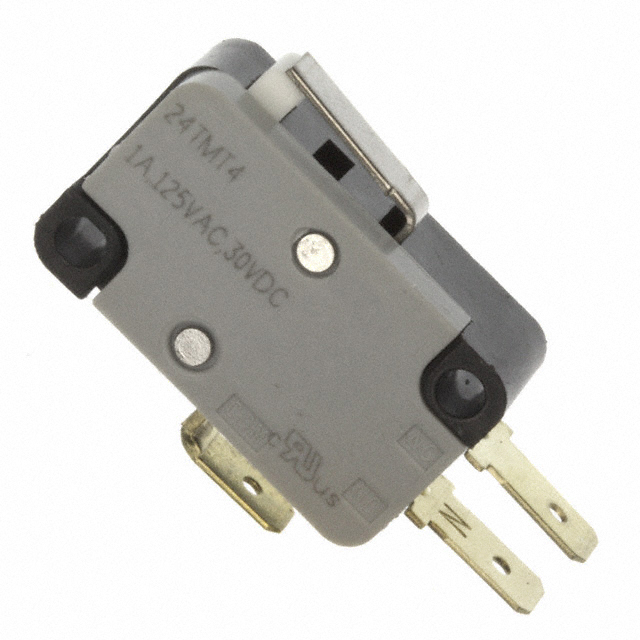

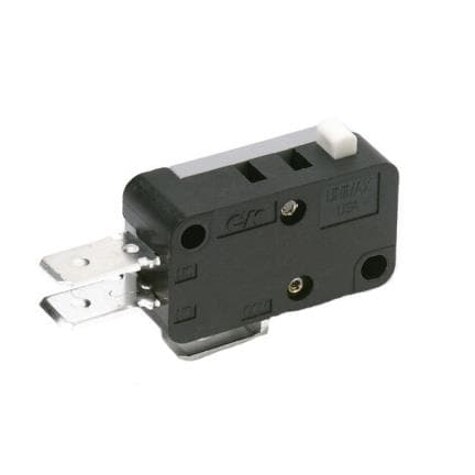

Tm0 Series Series

Basic / Snap Action Switches

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Basic / Snap Action Switches

Part	Pretravel	Pretravel	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Type	Termination Style	Switch Function	Mounting Type	Overtravel	Overtravel	Operating Position	Operating Position	Voltage Rating - AC	Circuit	Differential Travel	Differential Travel	Operating Force	Voltage Rating - DC	Electrical Life	Current Rating (Amps)	Release Force
Littelfuse/Commercial Vehicle Products TMCGF5SA2540C	7.9 mm	0.312 in	-55 °C	150 °C	Lever Roller	Quick Connect - 0.187" (4.7mm)	On-Mom	Chassis Mount	0.125 in	3.2 mm	0.812 in	20.6 mm	125 V	SPDT	1.8 mm	0.07 in	30 gf	30 V
Littelfuse/Commercial Vehicle Products TMCGD6SP004AY	1.4 mm	0.055 in	-55 °C	150 °C	Round (Pin Plunger)	Quick Connect - 0.250" (6.3mm)	Off-Mom	Chassis Mount	0.035 "	0.9 mm	0.579 in	14.7 mm	125 V	SPST-NO	0.33 mm	0.013 in	75 gf	125 VDC	350000 Cycles	10 A 500 mA	28 gf
Littelfuse/Commercial Vehicle Products TMCJD6VP0040C	1.4 mm	0.055 in	-55 °C	150 °C	Round (Pin Plunger)	Quick Connect - 0.187" (4.7mm)	On-Mom	Chassis Mount	0.035 "	0.9 mm	0.579 in	14.7 mm	125 V	SPDT	0.33 mm	0.013 in	150 gf	125 VDC		10 A 500 mA	60 gf
Littelfuse/Commercial Vehicle Products TMCFD6ST1540C	4.1 mm	0.161 in	-55 °C	150 °C	Lever Straight	Quick Connect - 0.187" (4.7mm)	On-Mom	Chassis Mount	0.075 in	1.9 mm	0.6 in	15.2 mm	125 V	SPDT	0.81 mm	0.032 in	30 gf	125 VDC		10 A 500 mA	6 gf
Littelfuse/Commercial Vehicle Products TMCGD6ST1340C	4.1 mm	0.161 in	-55 °C	150 °C	Lever Simulated Roller	Quick Connect - 0.187" (4.7mm)	On-Mom	Chassis Mount	0.065 in	1.7 mm	0.812 in	20.6 mm	125 V	SPDT	0.76 mm	0.03 in		125 VDC	350000 Cycles	10 A 500 mA	10 gf
Littelfuse/Commercial Vehicle Products TMCGF5ST1040C	2 mm	0.08 in	-55 °C	150 °C	Lever Straight	Quick Connect - 0.187" (4.7mm)	On-Mom	Chassis Mount	0.035 "	0.9 mm	0.6 in	15.2 mm	125 V	SPDT	0.33 mm	0.013 in	90 gf	30 V			28 gf
Littelfuse/Commercial Vehicle Products TMCGD6VT2040Y	4.1 mm	0.161 in	-55 °C	150 °C	Lever Straight	Quick Connect - 0.187" (4.7mm)	Off-Mom	Chassis Mount	0.065 in	1.7 mm	0.6 in	15.2 mm	125 V	SPST-NO	0.76 mm	0.03 in		125 VDC	350000 Cycles	10 A 500 mA	9 gf
Littelfuse/Commercial Vehicle Products TMCGD6ST254AC	8.4 mm	0.33 in	-55 °C	150 °C	Lever Straight	Quick Connect - 0.250" (6.3mm)	On-Mom	Chassis Mount	0.1 in	2.54 mm	0.6 in	15.2 mm	125 V	SPDT	1.8 mm	0.07 in	30 gf	125 VDC	350000 Cycles	10 A 500 mA	4 gf
Littelfuse/Commercial Vehicle Products TMCGF5ST1440C	3.6 mm	0.14 in	-55 °C	150 °C	Lever Simulated Roller	Quick Connect - 0.187" (4.7mm)	On-Mom	Chassis Mount	0.062 in	1.6 mm	0.745 in	18.9 mm	125 V	SPDT	1.3 mm	0.05 in	50 gf	30 V			10 gf
Littelfuse/Commercial Vehicle Products TMCGF5SP0040Y	1.4 mm	0.055 in	-55 °C	150 °C	Round (Pin Plunger)	Quick Connect - 0.187" (4.7mm)	Off-Mom	Chassis Mount	0.035 "	0.9 mm	0.579 in	14.7 mm	125 V	SPST-NO	0.33 mm	0.013 in	75 gf	30 V			28 gf

Catalog

Basic / Snap Action Switches

Key Features

• Broad range of operating forces available

• Wide variety of actuator and terminal styles

• Cost-effective solution

Description

The TM series mid size snap-acting switch from C&K is used in a variety of pumps and motors, consumer appliances and other white goods. The TM series gives designers a broad range of operating forces and a wide variety of actuator and terminal styles – making it a cost-effective solution for any innovative application.
