ADS62P15 Series
Manufacturer: Texas Instruments
Beta
⌘K
2-CHANNEL DUAL ADC PIPELINED 125MSPS 11-BIT PARALLEL/SERIAL/LVDS 64-PIN VQFN EP T/R
| Part | Mounting Type | Data Interface | Features | Number of A/D Converters | Reference Type | Input Type | Sampling Rate (Per Second) | Configuration | Architecture | Package / Case | Voltage - Supply, Digital [Min] | Voltage - Supply, Digital [Max] | Number of Bits | Voltage - Supply, Analog [Max] | Voltage - Supply, Analog [Min] | Supplier Device Package | Ratio - S/H:ADC | Number of Inputs | Operating Temperature [Max] | Operating Temperature [Min] | Power (Typ) @ Conditions | Utilized IC / Part | Input Range | Supplied Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | Surface Mount | LVDS - Parallel Parallel | Simultaneous Sampling | 2 | External Internal | Differential | 125 M | S/H-ADC | Pipelined | 64-VFQFN Exposed Pad | 1.65 V | 3.6 V | 11 | 3.6 V | 3 V | 64-VQFN (9x9) | 1:1 | 2 | 85 °C | -40 °C | ||||
 Texas Instruments | Surface Mount | LVDS - Parallel Parallel | Simultaneous Sampling | 2 | External Internal | Differential | 125 M | S/H-ADC | Pipelined | 64-VFQFN Exposed Pad | 1.65 V | 3.6 V | 11 | 3.6 V | 3 V | 64-VQFN (9x9) | 1:1 | 2 | 85 °C | -40 °C | ||||

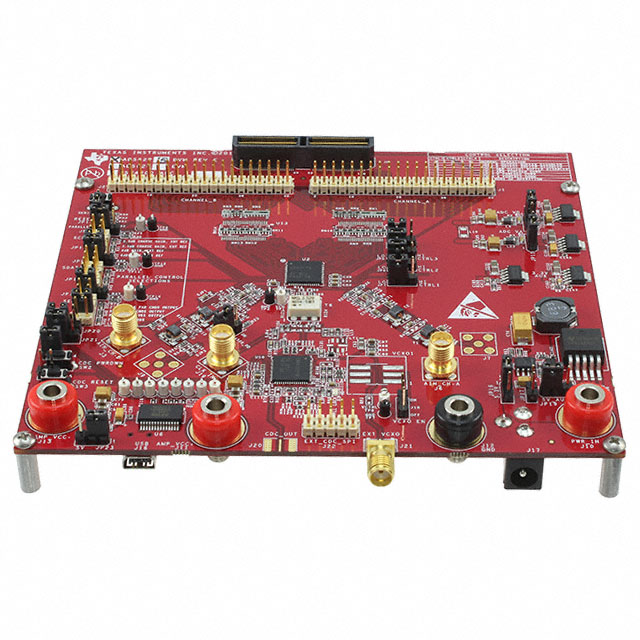

 Texas Instruments | Parallel Serial | 2 | 125 M | 11 | 1.22 W | ADS62P15 | 2 Vpp | Board(s) |
