FT63EP Series

Manufacturer: Nidec Components Corporation

Catalog

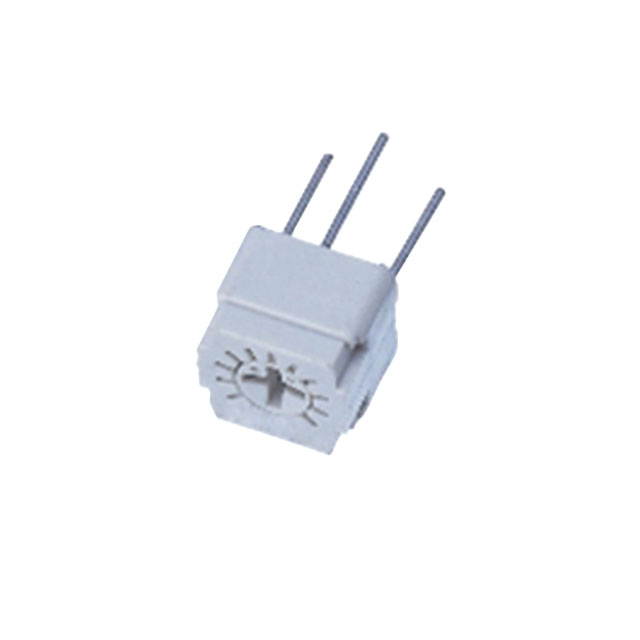

TRIMMER 20K OHM 0.5W PC PIN TOP

Part	Termination Style	Adjustment Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Temperature Coefficient	Power (Watts)	Power (Watts)	Resistive Material	Number of Turns	Tolerance	Resistance
Nidec Components Corporation FT-63EP203	PC Pins	Top Adjustment	7 mm	0.276 in	0.276 in	7 mm	Through Hole	100 ppm/°C	0.5 W	0.5 W	Cermet	1	10 %	20 kOhms
Nidec Components Corporation FT-63EP503	PC Pins	Top Adjustment	7 mm	0.276 in	0.276 in	7 mm	Through Hole	100 ppm/°C	0.5 W	0.5 W	Cermet	1	10 %	50 kOhms
Nidec Components Corporation FT-63EP100	PC Pins	Top Adjustment	7 mm	0.276 in	0.276 in	7 mm	Through Hole	150 ppm/°C	0.5 W	0.5 W	Cermet	1	10 %	10 Ohms
Nidec Components Corporation FT-63EP200	PC Pins	Top Adjustment	7 mm	0.276 in	0.276 in	7 mm	Through Hole	150 ppm/°C	0.5 W	0.5 W	Cermet	1	10 %	20 Ohms
Nidec Components Corporation FT-63EP101	PC Pins	Top Adjustment	7 mm	0.276 in	0.276 in	7 mm	Through Hole	100 ppm/°C	0.5 W	0.5 W	Cermet	1	10 %	100 Ohms
Nidec Components Corporation FT-63EP500	PC Pins	Top Adjustment	7 mm	0.276 in	0.276 in	7 mm	Through Hole	100 ppm/°C	0.5 W	0.5 W	Cermet	1	10 %	50 Ohms
Nidec Components Corporation FT-63EP201	PC Pins	Top Adjustment	7 mm	0.276 in	0.276 in	7 mm	Through Hole	100 ppm/°C	0.5 W	0.5 W	Cermet	1	10 %	200 Ohms
Nidec Components Corporation FT-63EP504	PC Pins	Top Adjustment	7 mm	0.276 in	0.276 in	7 mm	Through Hole	100 ppm/°C	0.5 W	0.5 W	Cermet	1	10 %
Nidec Components Corporation FT-63EP102	PC Pins	Top Adjustment	7 mm	0.276 in	0.276 in	7 mm	Through Hole	100 ppm/°C	0.5 W	0.5 W	Cermet	1	10 %	1000 Ohms
Nidec Components Corporation FT-63EP204	PC Pins	Top Adjustment	7 mm	0.276 in	0.276 in	7 mm	Through Hole	100 ppm/°C	0.5 W	0.5 W	Cermet	1	10 %	200000 Ohms
