895-116 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FML 116POS 0.100

...

Part	Material - Insulation	Termination Rows [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Flange Feature [diameter]	Flange Feature [diameter]	Card Thickness [Max]	Card Thickness [Min]	Contact Finish Thickness	Contact Finish Thickness	Number of Rows [custom]	Contact Material	Mounting Type	Card Type	Contact Finish	Number of Positions	Termination	Features	Contact Type	Color	Read Out	Pitch	Pitch	Number of Positions/Bay/Row	Gender	Flange Feature
EDAC Inc. 895-116-560-504	Polyphenylene Sulfide (PPS)	2	125 °C	-40 C	0.156 "	3.96 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	2	Copper Alloy	Board Edge Straddle Mount	Non Specified - Dual Edge	Gold	116	Solder	Card Extender	Cantilever	Black	Dual	0.1 "	2.54 mm	58	Female
EDAC Inc. 895-116-542-204	Polyphenylene Sulfide (PPS)	2	125 °C	-40 C	0.156 "	3.96 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	2	Copper Alloy	Through Hole	Non Specified - Dual Edge	Gold	116	Wire Wrap		Cantilever	Black	Dual	0.1 "	2.54 mm	58	Female	Flush Mount Top Opening Unthreaded
EDAC Inc. 895-116-558-204	Polyphenylene Sulfide (PPS)	2	125 °C	-40 C	0.156 "	3.96 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	2	Copper Alloy	Right Angle Through Hole	Non Specified - Dual Edge	Gold	116	Solder		Cantilever	Black	Dual	0.1 "	2.54 mm	58	Female	Flush Mount Top Opening Unthreaded
EDAC Inc. 895-116-525-212	Polyphenylene Sulfide (PPS)	2	125 °C	-40 C	0.128 "	3.25 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	2	Copper Alloy	Through Hole	Non Specified - Dual Edge	Gold	116	Solder		Cantilever	Black	Dual	0.1 "	2.54 mm	58	Female	Flush Mount Side Opening Unthreaded
EDAC Inc. 895-116-555-208	Polyphenylene Sulfide (PPS)	2	125 °C	-40 C			0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	2	Copper Alloy	Board Edge Straddle Mount	Non Specified - Dual Edge	Gold	116	Solder	Card Extender	Cantilever	Black	Dual	0.1 "	2.54 mm	58	Female	4-40 Flush Mount Threaded Insert Top Opening

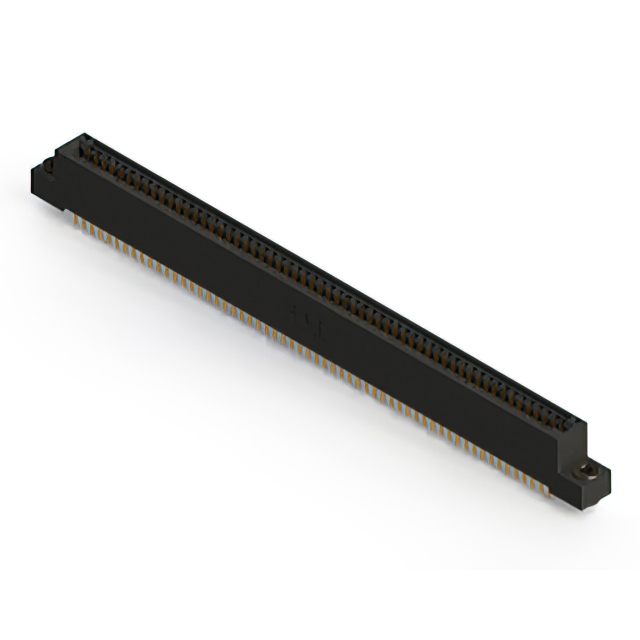

EDAC Inc. 895-116-525-203	Polyphenylene Sulfide (PPS)	2	125 °C	-40 C	0.116 "	2.95 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	2	Copper Alloy	Through Hole	Non Specified - Dual Edge	Gold	116	Solder		Cantilever	Black	Dual	0.1 "	2.54 mm	58	Female	Floating Bobbin Flush Mount
EDAC Inc. 895-116-523-503	Polyphenylene Sulfide (PPS)	2	125 °C	-40 C	0.116 "	2.95 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	2	Copper Alloy	Through Hole	Non Specified - Dual Edge	Gold	116	Solder		Cantilever	Black	Dual	0.1 "	2.54 mm	58	Female	Floating Bobbin Top Mount Opening

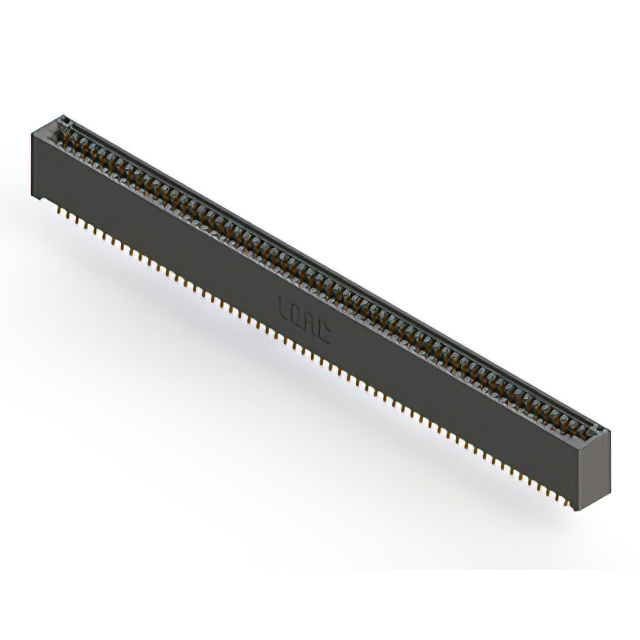

EDAC Inc. 895-116-556-201	Polyphenylene Sulfide (PPS)	2	125 °C	-40 C			0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	2	Copper Alloy	Board Edge Straddle Mount	Non Specified - Dual Edge	Gold	116	Solder	Card Extender	Cantilever	Black	Dual	0.1 "	2.54 mm	58	Female

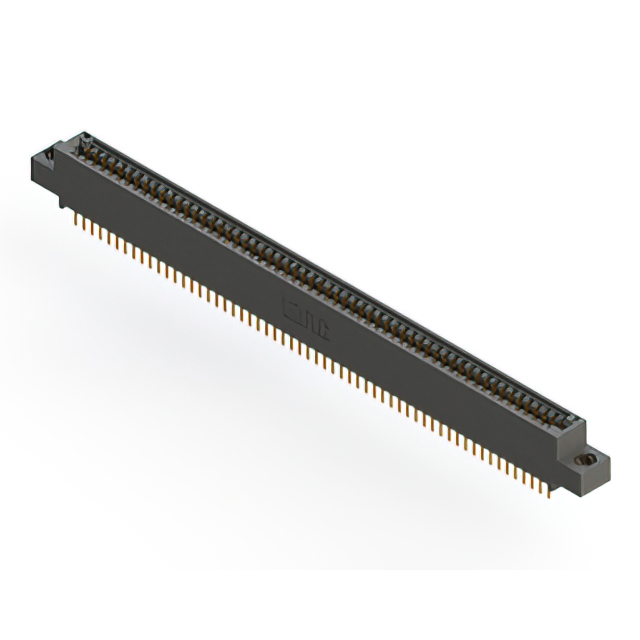

EDAC Inc. 895-116-520-507	Polyphenylene Sulfide (PPS)	2	125 °C	-40 C			0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	2	Copper Alloy	Through Hole	Non Specified - Dual Edge	Gold	116	Solder		Cantilever	Black	Dual	0.1 "	2.54 mm	58	Female	M3 Threaded Insert Top Mount Opening
EDAC Inc. 895-116-560-802	Polyphenylene Sulfide (PPS)	2	125 °C	-40 C	0.128 "	3.25 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	2	Copper Alloy	Board Edge Straddle Mount	Non Specified - Dual Edge	Gold	116	Solder	Card Extender	Cantilever	Black	Dual	0.1 "	2.54 mm	58	Female
