LP15 Series

Manufacturer: E-Switch

Catalog

SWITCH PUSH SPST-NO 1MA 20V

Part	Mechanical Life	Actuator Marking	Voltage Rating - DC	Termination Style	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Illumination Type, Color	Type	Current Rating (Amps)	Actuator Type	Illumination Voltage (Nominal)	Color - Actuator/Cap	Switch Function	Circuit

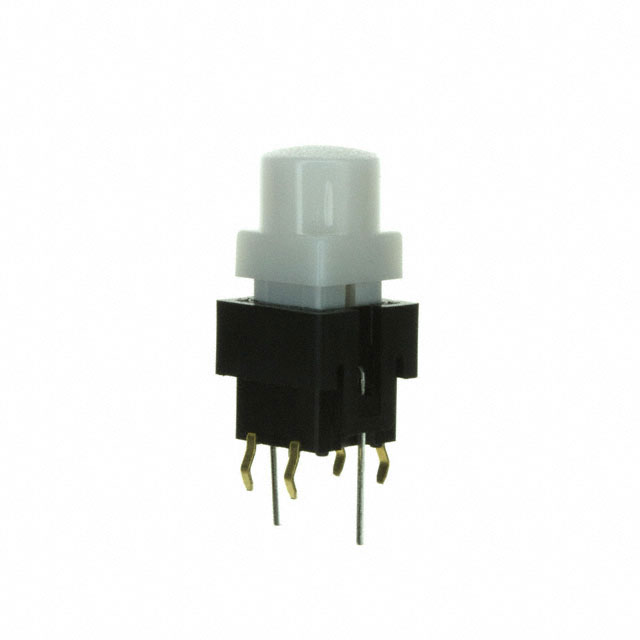

E-Switch LP15R1WHTGRN-N	300000 Cycles	No Marking	20 V	PC Pin	Through Hole	-20 ░C	70 °C	Green LED	Illuminated Standard	1 mA	Button Round	1.7 VDC	White	Off-Mom	SPST-NO

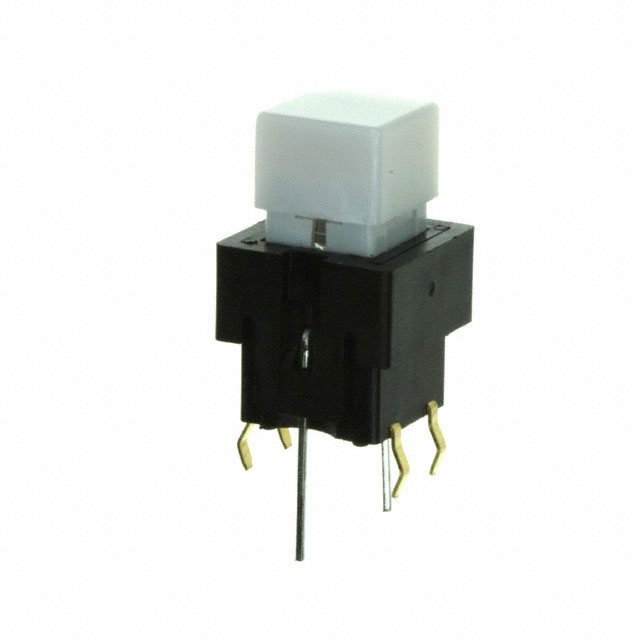

E-Switch LP15S1WHTBLU-N	300000 Cycles	No Marking	20 V	PC Pin	Through Hole	-20 ░C	70 °C	Blue LED	Illuminated Standard	1 mA	Button Square	3.5 VDC	White	Off-Mom	SPST-NO
E-Switch LP15S1WHTRED-N	300000 Cycles	No Marking	20 V	PC Pin	Through Hole	-20 ░C	70 °C	LED Red	Illuminated Standard	1 mA	Button Square	1.5 VDC	White	Off-Mom	SPST-NO
E-Switch LP15S1WHTGRN-N	300000 Cycles	No Marking	20 V	PC Pin	Through Hole	-20 ░C	70 °C	Green LED	Illuminated Standard	1 mA	Button Square	1.7 VDC	White	Off-Mom	SPST-NO
E-Switch LP15S1TRAYEL-N			20 V	PC Pin	Through Hole	-20 ░C	70 °C	LED Yellow	Illuminated Standard	1 mA	Button Square	1.7 VDC	Clear	Off-Mom	SPST-NO
E-Switch LP15R1WHTBLU-N	300000 Cycles	No Marking	20 V	PC Pin	Through Hole	-20 ░C	70 °C	Blue LED	Illuminated Standard	1 mA	Button Round	3.5 VDC	White	Off-Mom	SPST-NO
E-Switch LP15R1TRAWHTN	300000 Cycles	No Marking	20 V	PC Pin	Through Hole	-20 ░C	70 °C	LED White	Illuminated Standard	1 mA	Button Round	3.7 VDC	Clear	Off-Mom	SPST-NO
E-Switch LP15S1BLKGRNN	300000 Cycles	No Marking	20 V	PC Pin	Through Hole	-20 ░C	70 °C	Green LED	Illuminated Standard	1 mA	Button Square	1.7 VDC	Black	Off-Mom	SPST-NO

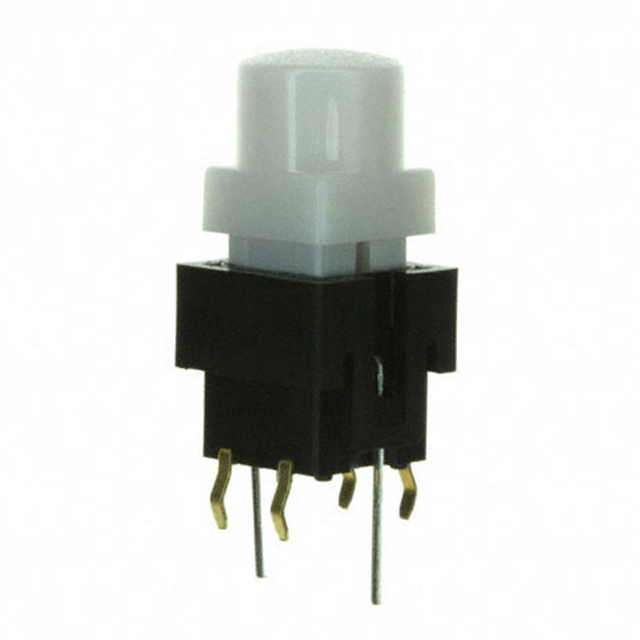

E-Switch LP15R1WHTRED-N	300000 Cycles	No Marking	20 V	PC Pin	Through Hole	-20 ░C	70 °C	LED Red	Illuminated Standard	1 mA	Button Round	1.5 VDC	White	Off-Mom	SPST-NO
