R12530 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

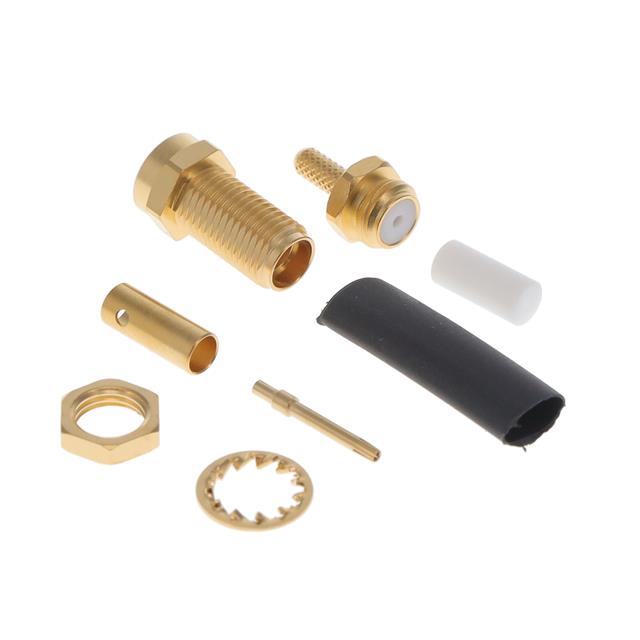

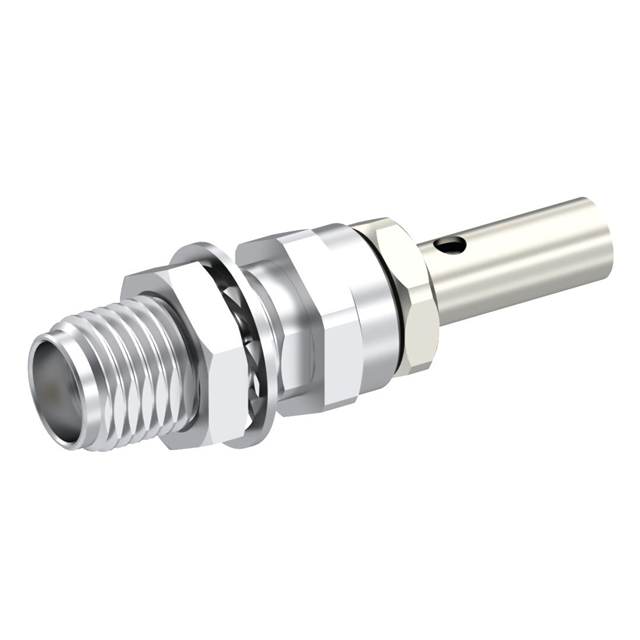

SMA / STRAIGHT BULKHEAD JACK CRI
| Part | Center Contact Plating | Body Finish | Operating Temperature [Min] | Operating Temperature [Max] | Body Material | Mating Cycles | Voltage Rating | Dielectric Material | Impedance | Cable Group | Connector Type | Contact Termination | Mounting Type | Center Contact Material | Housing Color | Frequency - Max [Max] | Mounting Feature | Fastening Type | Shield Termination | Number of Ports | Connector Style | Includes | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Gold | Gold | -65 ░C | 165 °C | Stainless Steel | 500 | 335 V | Polytetrafluoroethylene (PTFE) | 50 Ohms | 223 400 RG-142 | Female Socket Jack | Solder | Panel Mount | Beryllium Copper | Gold | 12.4 GHz | Bulkhead - Front Side Nut | Threaded | Crimp | 1 | SMA | ||
 Radiall USA, Inc. | Gold | Gold | -65 ░C | 165 °C | Stainless Steel | 500 | 250 V | Polytetrafluoroethylene (PTFE) | 50 Ohms | RG-174 | Female Socket Jack | Solder | Panel Mount | Beryllium Copper | Gold | 12.4 GHz | Bulkhead - Front Side Nut | Threaded | Crimp | 1 | SMA | 1 Connector 1 Lockwasher 1 Nut | 316 |
 Radiall USA, Inc. | Gold | -65 ░C | 165 °C | Stainless Steel | 500 | 250 V | Polytetrafluoroethylene (PTFE) | 50 Ohms | 316 RG-188 | Female Socket Jack | Solder | Panel Mount | Beryllium Copper | Silver | 12.4 GHz | Bulkhead - Front Side Nut | Threaded | Crimp | 1 | SMA |
