10SVPE Series
Manufacturer: Panasonic Electronic Components
Beta
⌘K

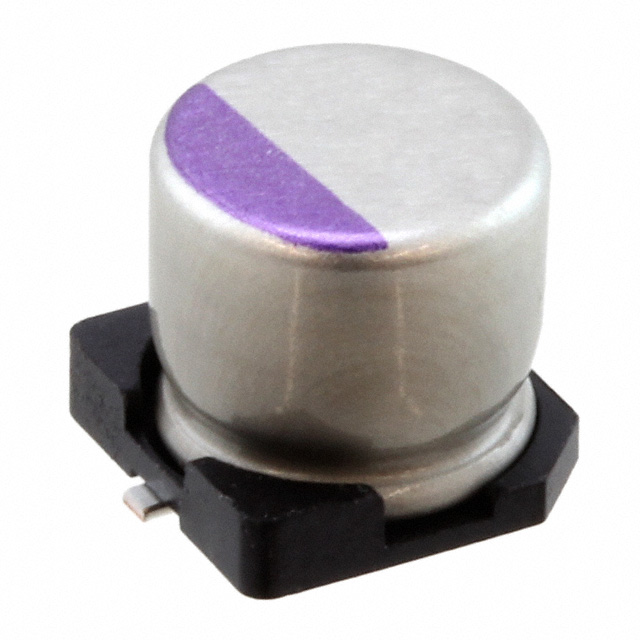

CAP ALUM POLY 220UF 20% 10V SMD
| Part | Tolerance | Capacitance | ESR (Equivalent Series Resistance) | Surface Mount Land Size [y] | Surface Mount Land Size [x] | Surface Mount Land Size [y] | Surface Mount Land Size [x] | Applications | Mounting Type | Ripple Current @ Low Frequency | Type | Size / Dimension [diameter] | Size / Dimension [diameter] | Voltage - Rated | Package / Case | Height - Seated (Max) | Height - Seated (Max) [Max] | Lifetime @ Temp. | Operating Temperature [Min] | Operating Temperature [Max] | Ripple Current @ High Frequency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Electronic Components | 20 % | 220 µF | 20 mOhms | 0.26 in | 6.6 mm | 6.6 mm | 0.26 in | General Purpose | Surface Mount | 135 mA | Polymer | 0.248 " | 6.3 mm | 10 V | Radial Can - SMD | 6 mm | 0.236 " | 2000 Hrs | -55 C | 105 ░C | 2.7 A |
