860-X08 Series
Manufacturer: NorComp Inc.
Beta
⌘K

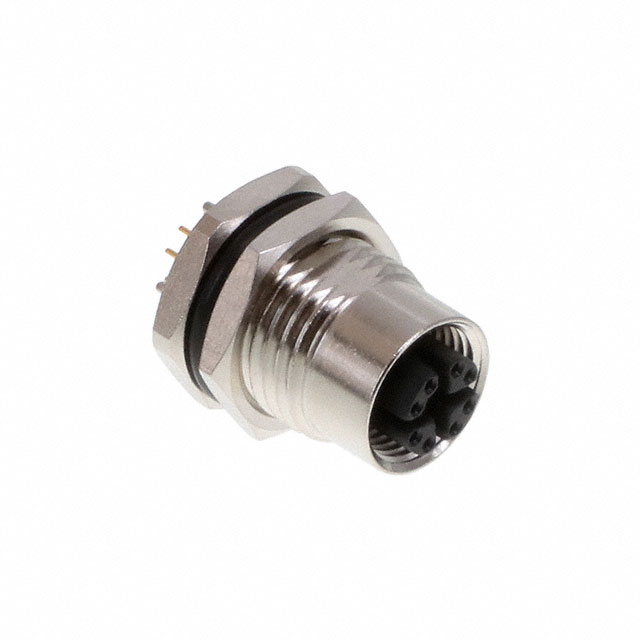

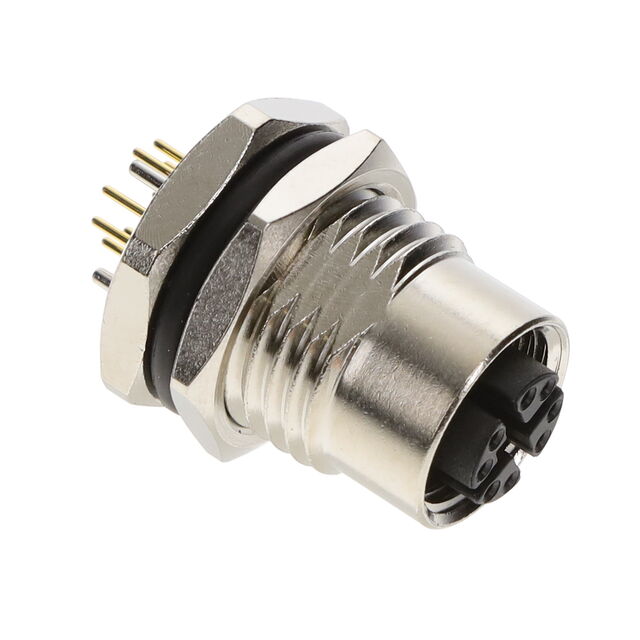

SENSOR CONNECTOR, VULCON SERIES, M12, MALE, 8 POSITIONS, PCB PIN, STRAIGHT PANEL MOUNT
| Part | Ingress Protection | Shell Size - Insert | Connector Type | Number of Positions | Primary Material | Voltage Rating | Current Rating (Amps) | Fastening Type | Mounting Feature | Orientation [x] | Mounting Type | Material Flammability Rating | Shell Material | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Contact Finish - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Applications | Insert Material [custom] | Insert Material [custom] | Shell Finish | Color | Termination | Shielding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | IP67 - Dust Tight Waterproof | M12-8 | Plug Female Sockets | 8 | Metal | 50 VAC 60 VDC | 0.5 A | Threaded | Bulkhead - Front Side Nut | X | Panel Mount Through Hole | UL94 V-0 | Brass | 85 °C | -40 C | Brass | Gold | 0.25 µm | 10 µin | Industrial | Nylon | Polyamide (PA) | Nickel | Silver | Solder | Shielded |
 NorComp Inc. | IP67 - Dust Tight Waterproof | M12-8 | Plug Female Sockets | 8 | Metal | 50 VAC 60 VDC | 0.5 A | Threaded | Bulkhead - Front Side Nut | X | Panel Mount Through Hole | UL94 V-0 | Brass | 85 °C | -40 C | Brass | Gold | 0.25 µm | 10 µin | Industrial Medical | Nylon | Polyamide (PA) | Nickel | Silver | Solder | Shielded |
 NorComp Inc. | IP67 - Dust Tight Waterproof | M12-8 | Plug Female Sockets | 8 | Metal | 50 VAC 60 VDC | Threaded | Bulkhead - Front Side Nut | X | Panel Mount Through Hole | UL94 V-0 | Brass | 85 °C | -40 C | Brass | Gold | 0.25 µm | 10 µin | Nylon | Polyamide (PA) | Nickel | Solder | Shielded |
