9GT0824 Series

Catalog

AXIAL FAN, 80MM, 24VDC, 65.7CFM, 46DBA

Part	Material - Frame	Current Rating (Amps)	Material - Blade	Lifetime @ Temp.	Bearing Type	Fan Type	Size / Dimension [z]	Size / Dimension [x]	Voltage - Rated	Operating Temperature [Min]	Operating Temperature [Max]	Static Pressure	Static Pressure	Power (Watts)	Termination	Approval Agency	Weight	Weight	Noise	RPM	Features	Width [y]	Air Flow	Air Flow	Width [x]	Air Flow

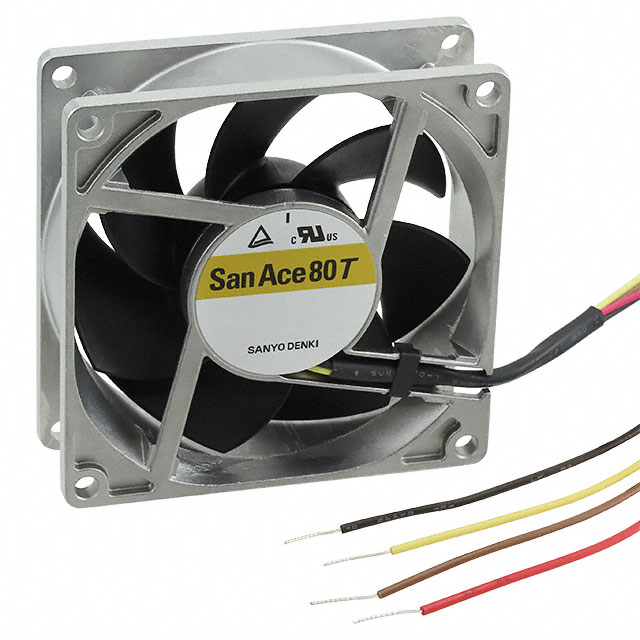

Sanyo Denki America Inc. 9GT0824P4S001	Aluminum	0.22 A	Plastic	40000 Hrs	Ball	Tubeaxial	80 mm	80 mm	24 VDC	-40 C	85 °C	0.574 in H2O	143 Pa	5.28 W	4 Wire Leads	CSA TUV UL	130.18 g	0.287 lb	46 dB(A)	6700 RPM	PWM Control Speed Sensor (Tach)	25 mm	1.84 m³/min	65.7 CFM
Sanyo Denki America Inc. 9GT0824S4001	Aluminum	0.22 A	Plastic	40000 Hrs	Ball	Tubeaxial	80 mm	80 mm	24 VDC	-40 C	85 °C	0.57 in H2O	142 Pa	5.28 W	3 Wire Leads	CSA TUV UL	130.18 g	0.287 lb	46 dB(A)	6700 RPM	Locked Rotor Protection Speed Sensor (Tach)		1.84 m³/min	65.7 CFM	25.2 mm
Sanyo Denki America Inc. 9GT0824S4002	Aluminum	0.22 A	Plastic	40000 Hrs	Ball	Tubeaxial	80 mm	80 mm	24 VDC	-40 C	85 °C	0.57 in H2O	142 Pa	5.28 W	2 Wire Leads	CSA TUV UL	130.18 g	0.287 lb	46 dB(A)	6700 RPM			1.84 m³/min	65.7 CFM	25.2 mm	65.7 CFM
