J01441A0 Series
Manufacturer: Telegartner Inc
Beta
⌘K

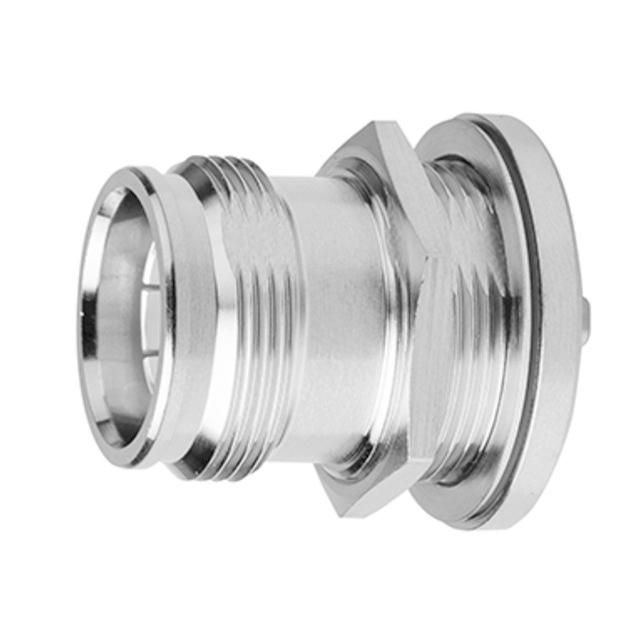

4.3-10 JCK STR BKHD SD/SD G10
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Body Material | Body Finish | Center Contact Plating | Dielectric Material | Shield Termination | Frequency - Max [Max] | Housing Color | Contact Termination | Connector Style | Fastening Type | Ingress Protection | Number of Ports | Mounting Feature | Impedance | Mounting Type | Connector Type | Center Contact Material | Voltage Rating | Mating Cycles |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Telegartner Inc | 90 °C | -55 C | Brass | Silver | Silver | Polytetrafluoroethylene (PTFE) | Solder | 6000 MHz | Silver | Solder | 4.3/10 | Threaded | IP67 - Dust Tight Waterproof | 1 | Bulkhead - Front Side Nut | 50 Ohms | Panel Mount | Female Socket Jack | Copper Alloy | ||
 Telegartner Inc | 85 °C | -40 C | Brass | Silver | Silver | Clamp | 6000 MHz | Silver | Crimp Solder | 4.3/10 | Threaded | IP68 - Dust Tight Waterproof | 1 | 50 Ohms | Free Hanging (In-Line) | Female Socket Jack | Copper Alloy | 1000 VDC | |||
 Telegartner Inc | 85 °C | -40 C | Copper Alloy | White Bronze | Silver | Polytetrafluoroethylene (PTFE) | Solder | 6000 MHz | Silver | Solder Cup | 4.3/10 | Threaded | 1 | Flange | 50 Ohms | Panel Mount | Receptacle Female Socket | Copper Alloy | |||
 Telegartner Inc | 85 °C | -40 C | Brass | Silver | Silver | Clamp | 6000 MHz | Silver | Crimp Solder | 4.3/10 | Threaded | IP68 - Dust Tight Waterproof | 1 | 50 Ohms | Free Hanging (In-Line) | Female Socket Jack | Copper Alloy | 1000 VDC | 500 | ||
 Telegartner Inc | 90 °C | -55 C | Brass | Silver | Silver | Polytetrafluoroethylene (PTFE) | Solder | 6000 MHz | Silver | Solder | 4.3/10 | Threaded | 1 | Flange | 50 Ohms | Panel Mount | Female Socket Jack | Copper Alloy | |||
 Telegartner Inc | 85 °C | -40 C | Copper Alloy | White Bronze | Silver | Polytetrafluoroethylene (PTFE) | Solder | 6000 MHz | Silver | Solder | 4.3/10 | Threaded | 1 | Flange | 50 Ohms | Panel Mount | Female Socket Jack | Copper Alloy | |||
 Telegartner Inc | 85 °C | -40 C | Brass | Silver | Silver | Polytetrafluoroethylene (PTFE) | Clamp | 6000 MHz | Silver | Crimp Solder | 4.3/10 | Threaded | IP68 - Dust Tight Waterproof | 1 | 50 Ohms | Free Hanging (In-Line) | Female Socket Jack | Copper Alloy | 1000 VDC | ||
 Telegartner Inc | 85 °C | -40 C | Copper Alloy | White Bronze | Silver | Polytetrafluoroethylene (PTFE) | Solder | 6000 MHz | Silver | Solder Cup | 4.3/10 | Threaded | IP67 - Dust Tight Waterproof | 1 | Bulkhead - Front Side Nut | 50 Ohms | Panel Mount | Female Socket Jack | Copper Alloy | ||
 Telegartner Inc | 90 °C | -55 C | Brass | Silver | Silver | Polytetrafluoroethylene (PTFE) | Solder | 6000 MHz | Silver | Solder | 4.3/10 | Threaded | 1 | 50 Ohms | Free Hanging (In-Line) | Female Socket Jack | Copper Alloy | ||||
Telegartner Inc | 90 °C | -55 C | Brass | Silver | Silver | Polytetrafluoroethylene (PTFE) | Solder | 6000 MHz | Silver | Solder | 4.3/10 | Threaded | 1 | Flange | 50 Ohms | Panel Mount | Female Socket Jack | Copper Alloy |
