QTM354 Series

Catalog

OPTOISO 3.75KV TRANS 4-MINI-FLAT

Part	Output Type	Supplier Device Package	Number of Channels [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Current Transfer Ratio (Min) [Min]	Mounting Type	Current - Output / Channel [custom]	Vce Saturation (Max) [Max]	Package / Case	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Voltage - Forward (Vf) (Typ)	Voltage - Isolation	Current - DC Forward (If) (Max) [Max]	Current Transfer Ratio (Max)

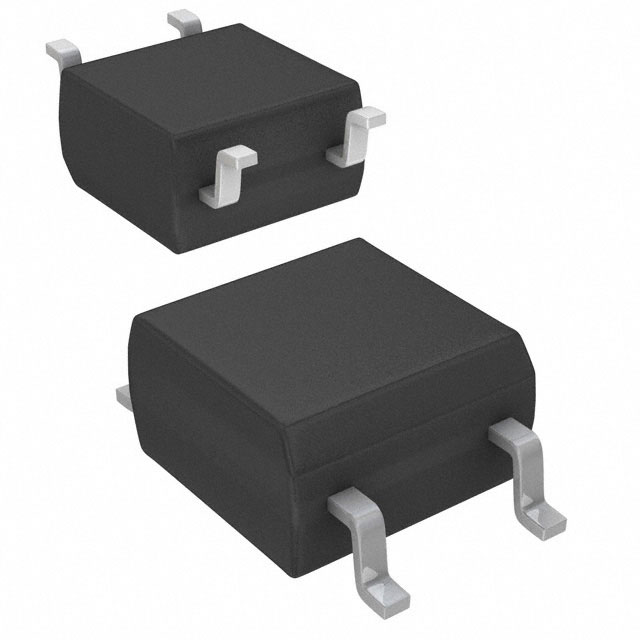

QT Brightek (QTB) QTM354T1	Transistor	4-Mini-Flat	1	-55 C	110 °C	20 %	Surface Mount	50 mA	200 mV	4-SMD Gull Wing	6 µs	8 µs	1.24 V	3750 Vrms	50 mA	300 %
