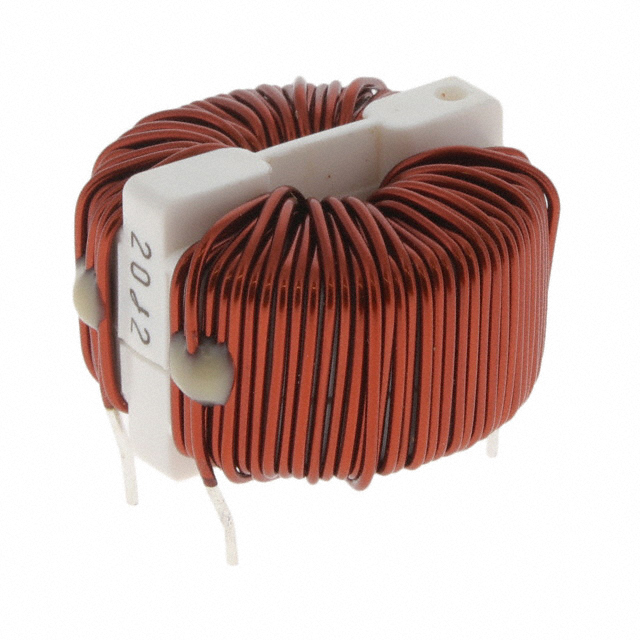

SC22-04 Series
Manufacturer: KEMET
Beta
⌘K
COMMON MODE FILTER, 9.45MH, 4.3A ROHS COMPLIANT: YES
| Part | DC Resistance (DCR) (Max) [Max] | Voltage Rating - AC | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Current Rating (Max) [Max] | Size / Dimension | Size / Dimension [diameter] | Voltage Rating - DC | Number of Lines | Inductance @ Frequency | Filter Type | Height (Max) | Height (Max) [Max] [z] | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | 80 mOhm | 250 V | 120 °C | -40 C | Through Hole | 4.3 A | 30 mm | 1.181 " | 250 V | 2 | 9.45 mH | Power Line | 19 mm | 0.748 in | 4 PC Pin Horizontal No Base |
