HBHR-B Series

Manufacturer: Adam Tech

Catalog

CONN HEADER VERT 40POS 1.27MM

Part	Contact Finish Thickness - Post	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Features	Contact Shape	Voltage Rating	Connector Type	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Row Spacing - Mating	Row Spacing - Mating	Insulation Material	Insulation Height	Insulation Height	Insulation Color	Contact Material	Fastening Type	Contact Type	Mounting Type	Pitch - Mating	Pitch - Mating	Shrouding	Number of Rows [custom]	Material Flammability Rating	Style	Termination	Number of Positions	Contact Length - Post [x]	Contact Length - Post

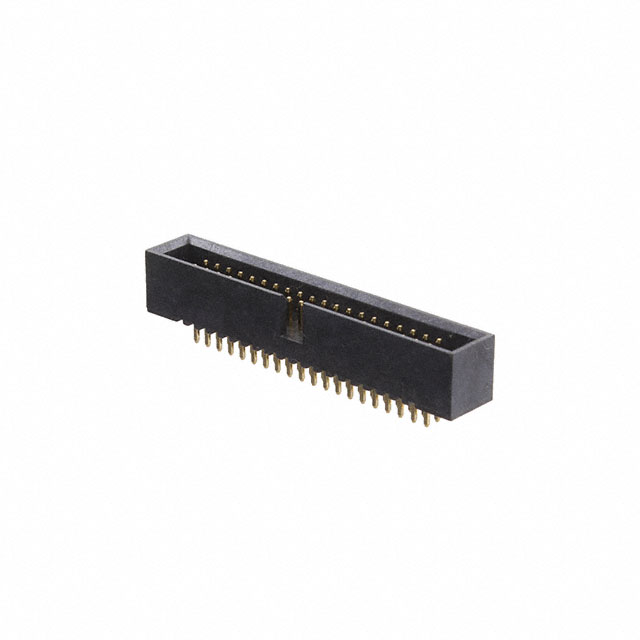

Adam Tech HBHR-B-40-VG	Flash	All	-40 C	105 ░C	Polarizing Key	Square	250 VAC	Header	Gold	Flash	Gold	0.05 in	1.27 mm	Thermoplastic	1.394 in	35.4 mm	Black	Brass	Push-Pull	Male Pin	Through Hole	1.27 mm	0.05 in	Shrouded - 4 Wall	2	UL94 V-0	Board to Cable/Wire	Solder	40	0.091 "	2.3 mm

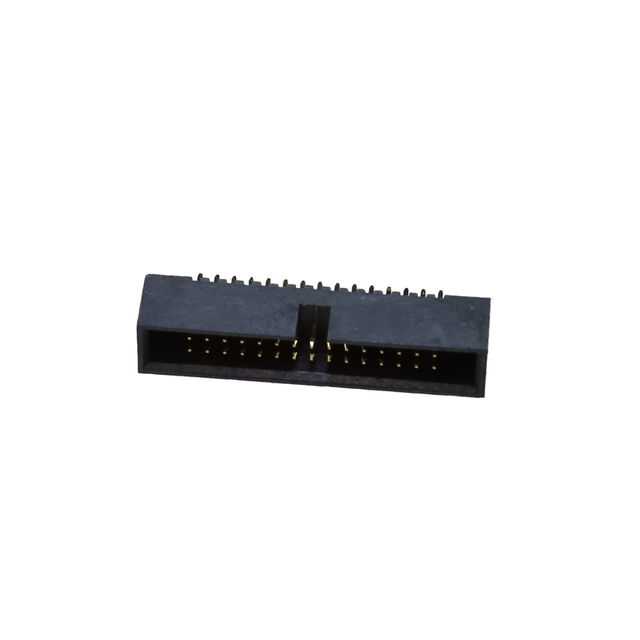

Adam Tech HBHR-B-30-VG	Flash	All	-40 C	105 ░C	Polarizing Key	Square	250 VAC	Header	Gold	Flash	Gold	0.05 in	1.27 mm	Thermoplastic	1.394 in	35.4 mm	Black	Brass	Push-Pull	Male Pin	Through Hole	1.27 mm	0.05 in	Shrouded - 4 Wall	2	UL94 V-0	Board to Cable/Wire	Solder	30	0.091 "	2.3 mm

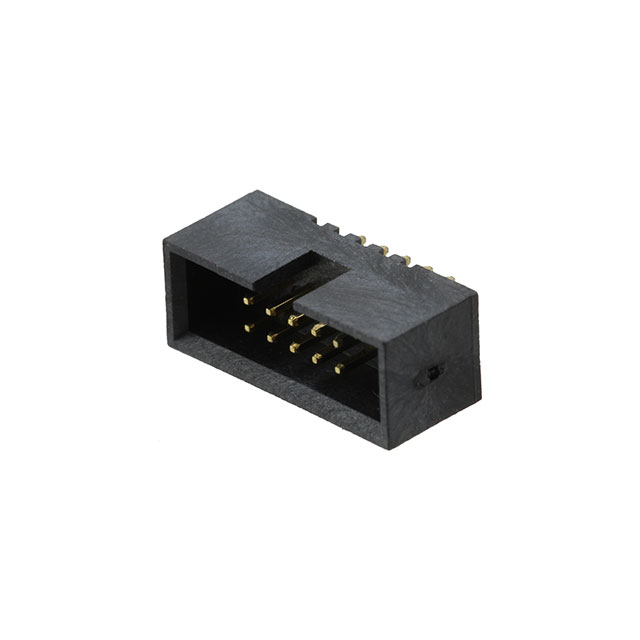

Adam Tech HBHR-B-10-VG	Flash	All	-40 C	105 ░C	Polarizing Key	Square	250 VAC	Header	Gold	Flash	Gold	0.05 in	1.27 mm	Thermoplastic	1.394 in	35.4 mm	Black	Brass	Push-Pull	Male Pin	Through Hole	1.27 mm	0.05 in	Shrouded - 4 Wall	2	UL94 V-0	Board to Cable/Wire	Solder	10	0.091 "	2.3 mm
Adam Tech HBHR-B-20-VG	Flash	All	-40 C	105 ░C	Polarizing Key	Square	250 VAC	Header	Gold	Flash	Gold	0.05 in	1.27 mm	Thermoplastic	1.394 in	35.4 mm	Black	Brass	Push-Pull	Male Pin	Through Hole	1.27 mm	0.05 in	Shrouded - 4 Wall	2	UL94 V-0	Board to Cable/Wire	Solder	20	0.091 "	2.3 mm
