34113 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

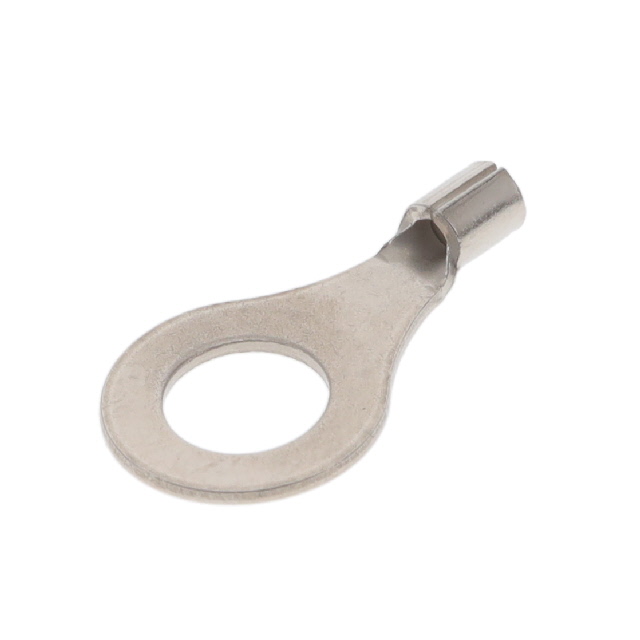

CONN RING CIRC 16-22AWG #1/4
| Part | Thickness | Thickness | Mounting Type | Length - Overall | Length - Overall [x] | Contact Finish | Contact Material | Wire Gauge [Max] | Wire Gauge [Min] | Termination | Stud/Tab Size | Width - Outer Edges [y] | Width - Outer Edges [y] | Terminal Type | Features | Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 0.031 in | 0.79 mm | Free Hanging (In-Line) | 21.74 mm | 0.856 " | Nickel | Copper | 22 AWG | 16 AWG | Crimp | 0.25 Stud | 11.91 mm | 0.469 in | Circular | Brazed Seam Serrated Termination | Non-Insulated |
