P8-10 Series

Catalog

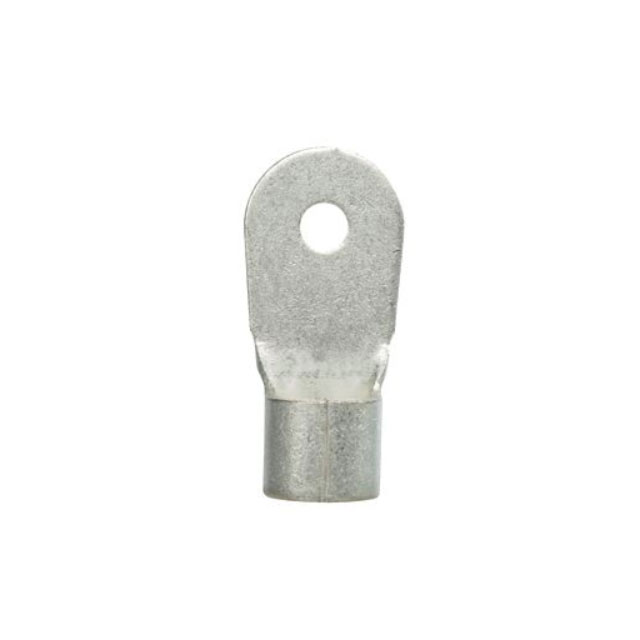

RING TONGUE TERMINAL, M5, #10, 8 AWG, 10 MM², P-RHT6 SERIES

Part	Stud/Tab Size	Terminal Type	Insulation	Mounting Type	Features	Contact Material	Wire Gauge	Thickness	Thickness	Contact Finish	Width - Outer Edges [x]	Width - Outer Edges [x]	Termination	Length - Overall [x]	Length - Overall [x]	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Width - Outer Edges [y]	Width - Outer Edges [y]	Width - Outer Edges	Width - Outer Edges
Panduit Corp P8-10RNHT6-Q	10 Stud	D-Shaped	Non-Insulated	Free Hanging (In-Line)	Brazed Seam	Copper	8 AWG	0.04 in	1.02 mm	Nickel	0.36 in	9.14 mm	Crimp	1.09 in	27.69 mm
Panduit Corp P8-10R-Q	10 Stud	Circular	Non-Insulated	Free Hanging (In-Line)	Brazed Seam	Copper	8 AWG	0.04 in	1.02 mm	Tin			Crimp	1.14 in	28.96 mm	0.28 "	7.11 mm	0.47 in	11.94 mm

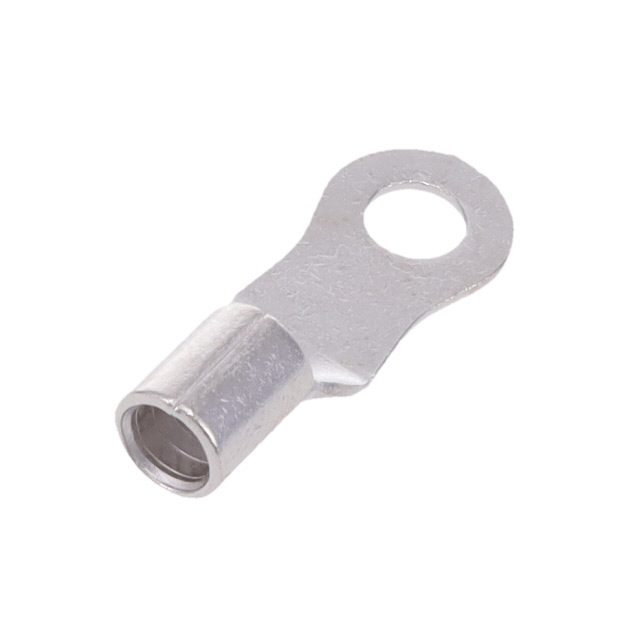

Panduit Corp P8-10RHT6-T	10 Stud	D-Shaped	Non-Insulated	Free Hanging (In-Line)	Brazed Seam	Copper	8 AWG	0.04 in	1.02 mm	Nickel			Crimp	1.14 in	28.96 mm					10.67 mm	0.42 in
Panduit Corp P8-10RHT6-Q	10 Stud	D-Shaped	Non-Insulated	Free Hanging (In-Line)	Brazed Seam	Copper	8 AWG	0.04 in	1.02 mm	Nickel			Crimp	1.14 in	28.96 mm					10.67 mm	0.42 in
