M50-350 Series

Catalog

CONN HEADER VERT 16POS 1.27MM

Part	Mated Stacking Heights	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions	Insulation Height [z]	Insulation Height [z]	Contact Shape	Termination	Row Spacing - Mating	Row Spacing - Mating	Fastening Type	Pitch - Mating	Pitch - Mating	Style	Number of Rows [custom]	Contact Finish - Mating	Current Rating (Amps)	Contact Length - Post [x]	Contact Length - Post	Contact Material	Mounting Type	Insulation Material	Material Flammability Rating	Overall Contact Length	Overall Contact Length	Number of Positions Loaded	Contact Finish - Post	Contact Length - Mating	Contact Length - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Shrouding	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color

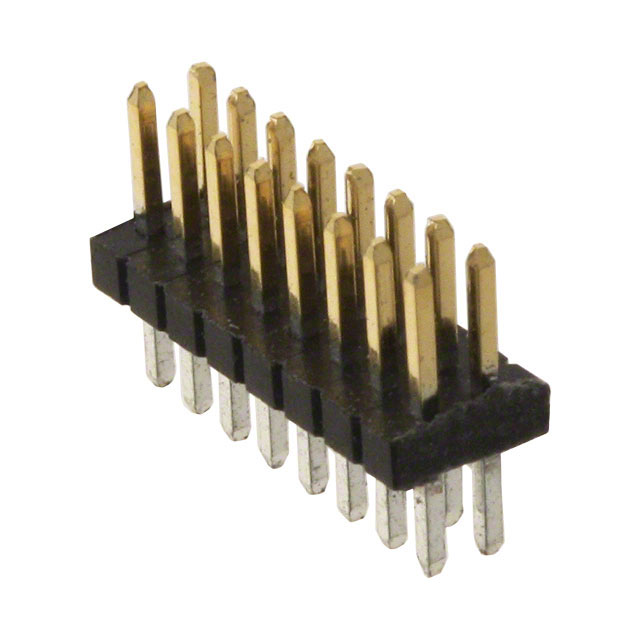

Harwin Inc. M50-3500842	3.2 mm 4.6 mm 5.4 mm 5.5 mm 6.23 mm	2.5 µm	98.4 µin	16	1 mm	0.039 in	Square	Solder	0.05 in	1.27 mm	Push-Pull	1.27 mm	0.05 in	Board to Board Cable	2	Gold	1 A	0.091 "	2.3 mm	Copper Alloy	Through Hole	Thermoplastic	UL94 V-0	0.248 in	6.3 mm	All	Tin	3 mm	0.118 in	0.076 µm	3 µin	Header	Unshrouded	Male Pin	-40 C	105 ░C	Black

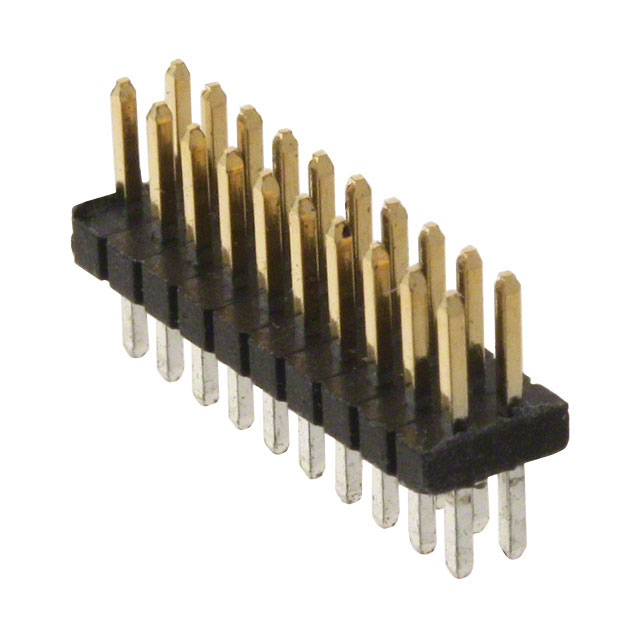

Harwin Inc. M50-3501042	3.2 mm 4.6 mm 5.4 mm 5.5 mm 6.23 mm	2.5 µm	98.4 µin	20	1 mm	0.039 in	Square	Solder	0.05 in	1.27 mm	Push-Pull	1.27 mm	0.05 in	Board to Board Cable	2	Gold	1 A	0.091 "	2.3 mm	Copper Alloy	Through Hole	Thermoplastic	UL94 V-0	0.248 in	6.3 mm	All	Tin	3 mm	0.118 in	0.076 µm	3 µin	Header	Unshrouded	Male Pin	-40 C	105 ░C	Black
Harwin Inc. M50-3500542	3.2 mm 4.6 mm 5.4 mm 5.5 mm 6.23 mm	2.5 µm	98.4 µin	10	1 mm	0.039 in	Square	Solder	0.05 in	1.27 mm	Push-Pull	1.27 mm	0.05 in	Board to Board Cable	2	Gold	1 A	0.091 "	2.3 mm	Copper Alloy	Through Hole	Thermoplastic	UL94 V-0	0.248 in	6.3 mm	All	Tin	3 mm	0.118 in	0.076 µm	3 µin	Header	Unshrouded	Male Pin	-40 C	105 ░C	Black
