3221-2 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K
CONN PC PIN CIRC
| Part | Length - Overall [x] | Length - Overall [x] | Terminal Type | Pin Size - Below Flange [diameter] | Pin Size - Below Flange [diameter] | Mounting Type | Insulation | Contact Finish | Length - Below Flange [x] | Length - Below Flange [x] | Length - Above Flange [custom] | Length - Above Flange [custom] | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Pin Size - Above Flange [diameter] | Pin Size - Above Flange | Board Thickness | Board Thickness | Contact Finish Thickness | Contact Finish Thickness | Terminal Style | Contact Material | Flange Diameter [diameter] | Flange Diameter [diameter] | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

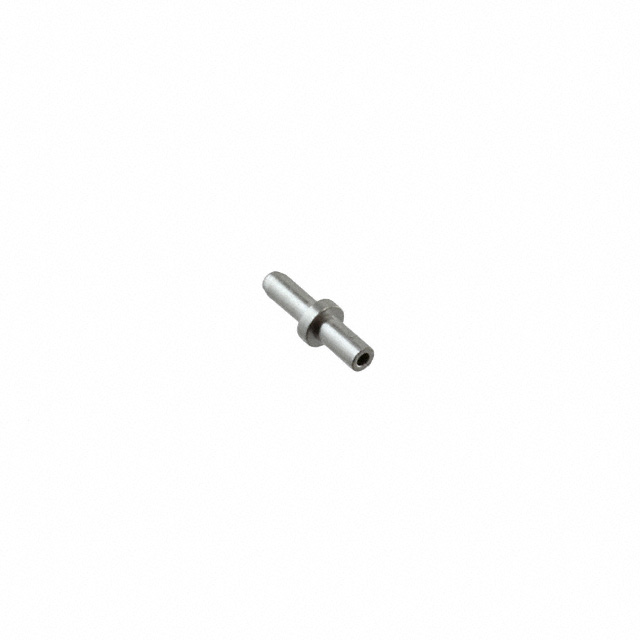

 Mill-Max Manufacturing Corp. | 0.202 in | 5.13 mm | PC Pin | 0.039 in | 0.99 mm | Through Hole | Non-Insulated | Tin | 2.08 mm | 0.082 " | 0.1 in | 2.54 mm | 0.043 in | 1.09 mm | 0.04 in | 1.02 mm | 1.57 mm | 0.062 " | 200 Áin | 5.08 Ám | Single End | Brass | 1.78 mm | 0.07 in | Swage |

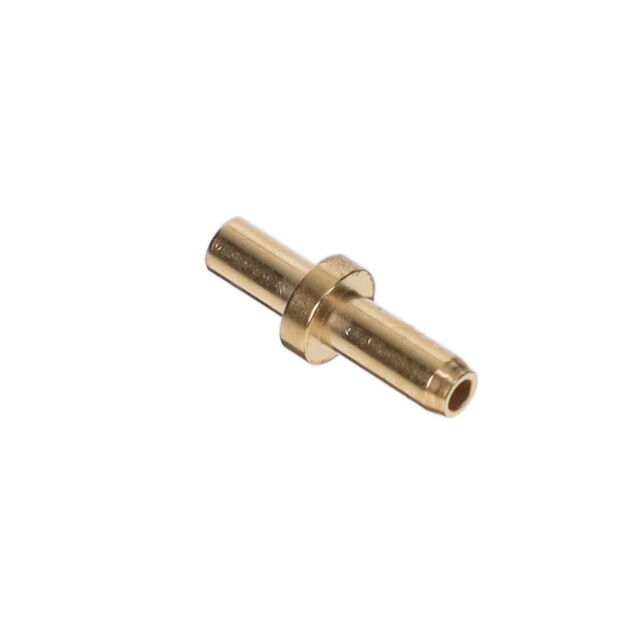

 Mill-Max Manufacturing Corp. | 0.202 in | 5.13 mm | PC Pin | 0.039 in | 0.99 mm | Through Hole | Non-Insulated | Gold | 2.08 mm | 0.082 " | 0.1 in | 2.54 mm | 0.043 in | 1.09 mm | 0.04 in | 1.02 mm | 1.57 mm | 0.062 " | 10 Áin | 0.25 Ám | Single End | Brass Alloy | 1.77 mm | 0.07 in | Swage |
 Mill-Max Manufacturing Corp. | 0.202 in | 5.13 mm | PC Pin | 0.039 in | 0.99 mm | Through Hole | Non-Insulated | Gold | 2.08 mm | 0.082 " | 0.1 in | 2.54 mm | 0.043 in | 1.09 mm | 0.04 in | 1.02 mm | 1.57 mm | 0.062 " | 20 µin | 0.51 µm | Single End | Brass Alloy | 1.77 mm | 0.07 in | Swage |
