846-033 Series
Manufacturer: EDAC Inc.
Beta
⌘K

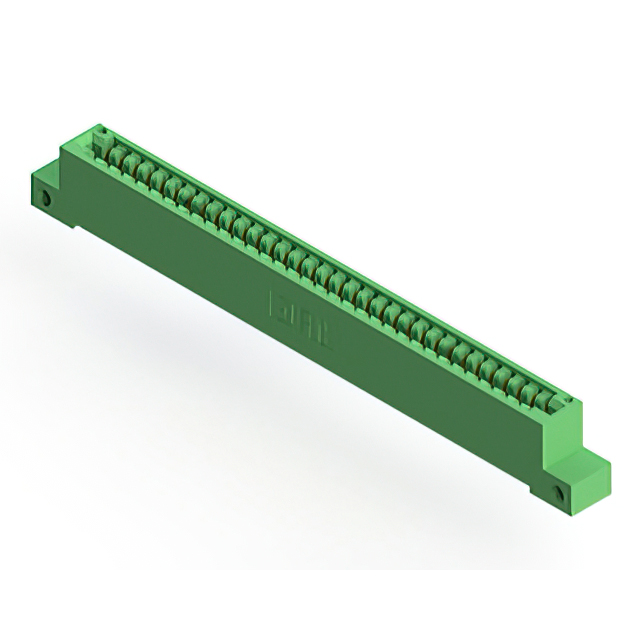

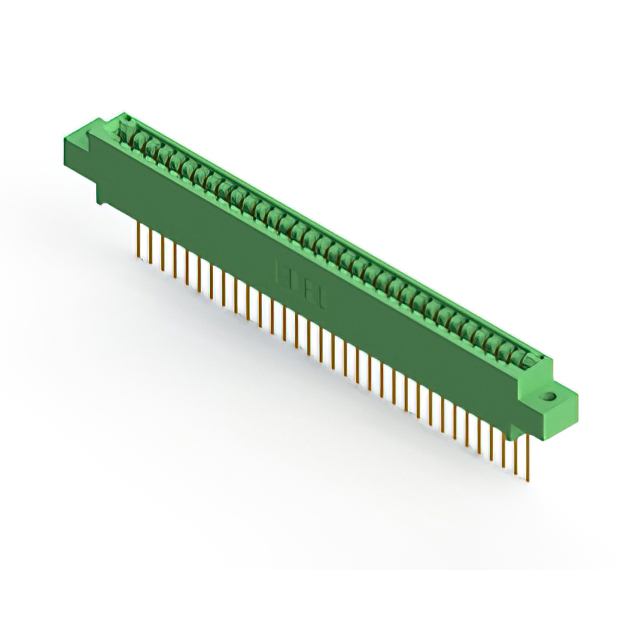

CONN EDGE SGL FMALE 33POS 0.125
| Part | Termination Rows | Material - Insulation | Read Out | Gender | Termination | Number of Positions/Bay/Row | Color | Pitch | Pitch | Contact Finish Thickness | Contact Finish Thickness | Number of Rows | Flange Feature [diameter] | Flange Feature [diameter] | Contact Finish | Number of Positions [custom] | Card Type | Contact Type | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Card Thickness [Max] | Card Thickness [Min] | Contact Material | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Single | Female | Solder | 33 | Green | 3.18 mm | 0.125 in | 0.25 Ám | 10 Áin | 1 | 3.25 mm | 0.128 " | Gold | 33 | Non Specified - Single Edge | Cantilever | Right Angle Through Hole | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Single | Female | Wire Wrap | 33 | Green | 3.18 mm | 0.125 in | 0.25 Ám | 10 Áin | 1 | Gold | 33 | Non Specified - Single Edge | Cantilever | Through Hole | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | 4-40 Threaded Insert Top Mount Opening | ||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Single | Female | Solder | 33 | Green | 3.18 mm | 0.125 in | 0.25 Ám | 10 Áin | 1 | Gold | 33 | Non Specified - Single Edge | Cantilever | Right Angle Through Hole | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | 4-40 Threaded Insert Top Mount Opening | ||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Single | Female | Solder Eyelet(s) | 33 | Green | 3.18 mm | 0.125 in | 0.25 Ám | 10 Áin | 1 | 3.25 mm | 0.128 " | Gold | 33 | Non Specified - Single Edge | Cantilever | Through Hole | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Side Mount Opening Unthreaded |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Single | Female | Solder | 33 | Green | 3.18 mm | 0.125 in | 0.25 Ám | 10 Áin | 1 | 3.25 mm | 0.128 " | Gold | 33 | Non Specified - Single Edge | Cantilever | Through Hole | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Flush Mount Side Opening Unthreaded |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Single | Female | Solder | 33 | Green | 3.18 mm | 0.125 in | 0.25 Ám | 10 Áin | 1 | Gold | 33 | Non Specified - Single Edge | Cantilever | Right Angle Through Hole | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | |||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Single | Female | Solder | 33 | Green | 3.18 mm | 0.125 in | 0.25 Ám | 10 Áin | 1 | 2.95 mm | 0.116 " | Gold | 33 | Non Specified - Single Edge | Cantilever | Through Hole | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Floating Bobbin Top Mount Opening |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Single | Female | Solder | 33 | Green | 3.18 mm | 0.125 in | 0.25 Ám | 10 Áin | 1 | 3.96 mm | 0.156 " | Gold | 33 | Non Specified - Single Edge | Cantilever | Through Hole | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Single | Female | Wire Wrap | 33 | Green | 3.18 mm | 0.125 in | 0.25 Ám | 10 Áin | 1 | Gold | 33 | Non Specified - Single Edge | Cantilever | Through Hole | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Flush Mount M3 Threaded Insert Top Opening | ||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Single | Female | Solder | 33 | Green | 3.18 mm | 0.125 in | 0.25 Ám | 10 Áin | 1 | 2.95 mm | 0.116 " | Gold | 33 | Non Specified - Single Edge | Cantilever | Through Hole | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Floating Bobbin Flush Mount |
