VMS-450 Series

Manufacturer: CUI Inc.

Catalog

AC/DC POWER SUPPLY SINGLE-OUT 54V 8.3A 450W 17-PIN BOX

Part	Mounting Type	Voltage - Output 1	Type	Standard Number	Features	Voltage - Isolation	Applications	Power (Watts)	Voltage - Input [Min]	Voltage - Input [Max]	Current - Output 1	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Number of Outputs	Efficiency	Approval Agency	Size / Dimension [z]	Size / Dimension [y]	Voltage - Output 1 [custom]

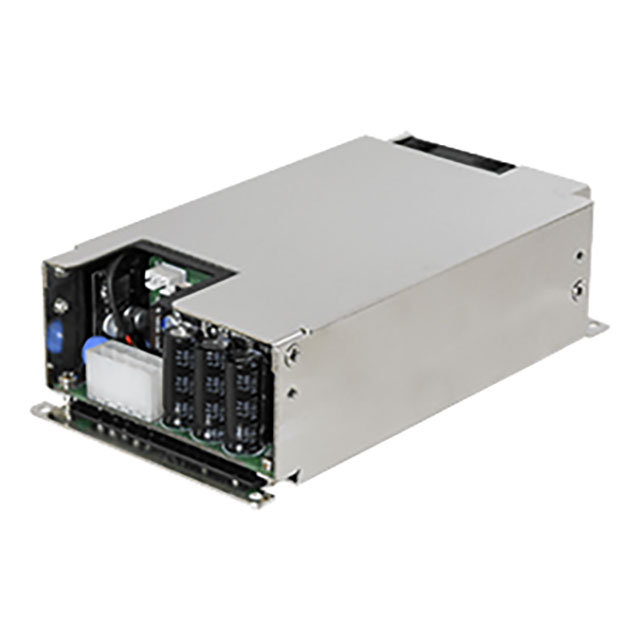

CUI Inc. VMS-450B-54-CFS	Chassis Mount	54 V	Enclosed	55011 Class B; 60601-1; 61000-3-2; 61000-3-3	PFC Remote On/Off Standby Output Universal Input	4000 V	Medical	448 W	100 VAC	240 VAC	8.3 A	70 °C	-20 °C	80 mm	5.83 "	40.6 mm	1.6 "	3.15 in	148.1 mm	1	92 %	CB Scheme EN IEC TUV UL

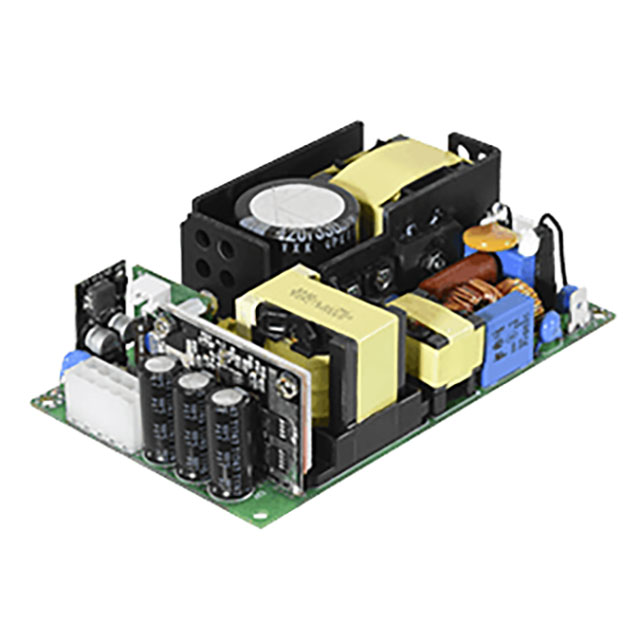

CUI Inc. VMS-450B-19	Chassis Mount	19 V	Open Frame	55011 Class B; 60601-1; 61000-3-2; 61000-3-3	PFC Remote On/Off Standby Output Universal Input	4000 V	Medical	450 W	100 VAC	240 VAC	23.7 A	70 °C	-20 °C		5 "		1.26 "	3 "	127 mm	1	92 %	CB Scheme EN IEC TUV UL	32 mm	76.2 mm

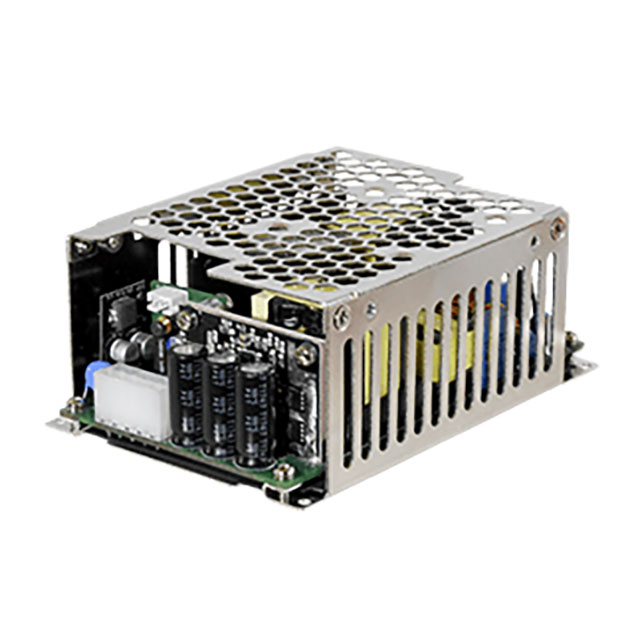

CUI Inc. VMS-450B-48-CNF	Chassis Mount	48 V	Enclosed	55011 Class B; 60601-1; 61000-3-2; 61000-3-3	PFC Remote On/Off Standby Output Universal Input	4000 V	Medical	451 W	100 VAC	240 VAC	9.4 A	70 °C	-20 °C		5 "		1.97 "	3.41 in	127 mm	1	91 %	CB Scheme EN IEC TUV UL	50 mm	86.6 mm
CUI Inc. VMS-450B-12-CNF	Chassis Mount	12 V	Enclosed	55011 Class B; 60601-1; 61000-3-2; 61000-3-3	PFC Remote On/Off Standby Output Universal Input	4000 V	Medical	450 W	100 VAC	240 VAC	37.5 A	70 °C	-20 °C		5 "		1.97 "	3.41 in	127 mm	1	89 %	CB Scheme EN IEC TUV UL	50 mm	86.6 mm

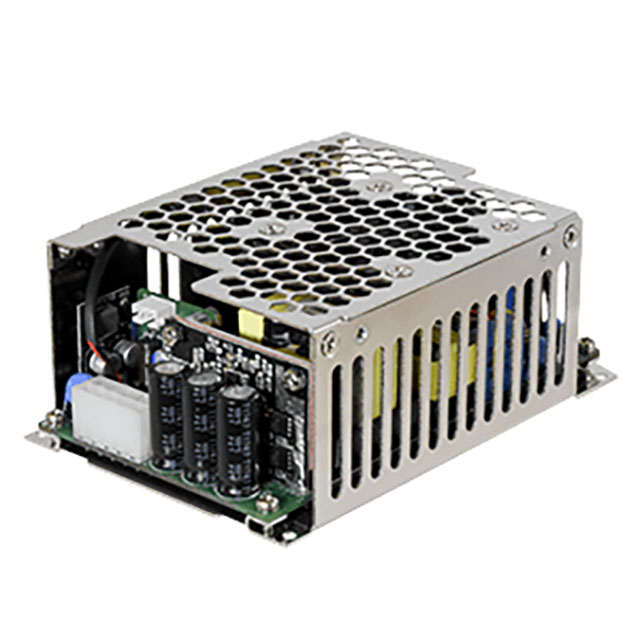

CUI Inc. VMS-450B-48-CF	Chassis Mount	48 V	Enclosed	55011 Class B; 60601-1; 61000-3-2; 61000-3-3	PFC Remote On/Off Standby Output Universal Input	4000 V	Medical	451 W	100 VAC	240 VAC	9.4 A	70 °C	-20 °C		5 "		1.97 "	3.41 in	127 mm	1	91 %	CB Scheme EN IEC TUV UL	50 mm	86.6 mm
CUI Inc. VMS-450B-12-CF	Chassis Mount	12 V	Enclosed	55011 Class B; 60601-1; 61000-3-2; 61000-3-3	PFC Remote On/Off Standby Output Universal Input	4000 V	Medical	450 W	100 VAC	240 VAC	37.5 A	70 °C	-20 °C		5 "		1.97 "	3.41 in	127 mm	1	89 %	CB Scheme EN IEC TUV UL	50 mm	86.6 mm
CUI Inc. VMS-450B-24-CF	Chassis Mount	24 V	Enclosed	55011 Class B; 60601-1; 61000-3-2; 61000-3-3	PFC Remote On/Off Standby Output Universal Input	4000 V	Medical	451 W	100 VAC	240 VAC	18.8 A	70 °C	-20 °C		5 "		1.97 "	3.41 in	127 mm	1	91 %	CB Scheme EN IEC TUV UL	50 mm	86.6 mm
CUI Inc. VMS-450B-12-CFS	Chassis Mount	12 V	Enclosed	55011 Class B; 60601-1; 61000-3-2; 61000-3-3	PFC Remote On/Off Standby Output Universal Input	4000 V	Medical	450 W	100 VAC	240 VAC	37.5 A	70 °C	-20 °C	80 mm	5.83 "	40.6 mm	1.6 "	3.15 in	148.1 mm	1	89 %	CB Scheme EN IEC TUV UL
CUI Inc. VMS-450B-15-CFS	Chassis Mount	15 V	Enclosed	55011 Class B; 60601-1; 61000-3-2; 61000-3-3	PFC Remote On/Off Standby Output Universal Input	4000 V	Medical	450 W	100 VAC	240 VAC	30 A	70 °C	-20 °C	80 mm	5.83 "	40.6 mm	1.6 "	3.15 in	148.1 mm	1	89 %	CB Scheme EN IEC TUV UL
CUI Inc. VMS-450B-36-CNF	Chassis Mount		Enclosed	55011 Class B; 60601-1; 61000-3-2; 61000-3-3	PFC Remote On/Off Standby Output Universal Input	4000 V	Medical	450 W	100 VAC	240 VAC	12.5 A	70 °C	-20 °C		5 "		1.97 "	3.41 in	127 mm	1	90 %	CB Scheme EN IEC TUV UL	50 mm	86.6 mm	36 V
