BX24 Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K

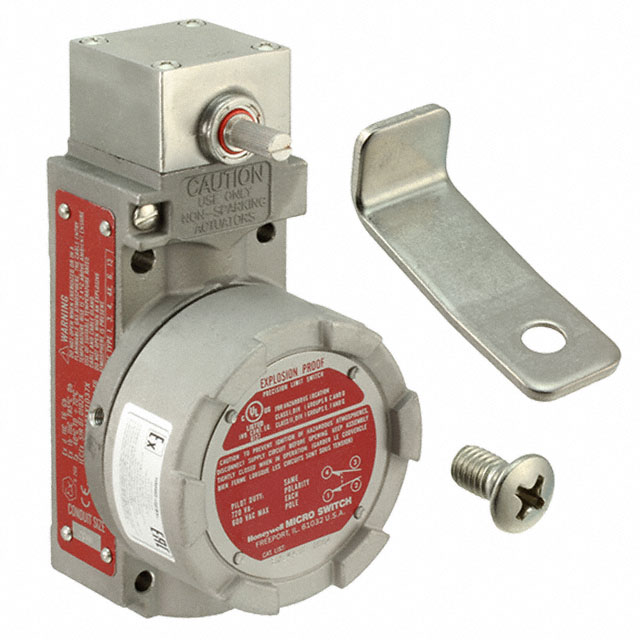

SWITCH SNAP ACTION DPDT 10A 120V
| Part | Circuit | Differential Travel | Termination Style | Actuator Type | Ingress Protection | Operating Force | Mounting Type | Voltage Rating - DC | Voltage Rating - AC | Overtravel | Pretravel | Operating Position | Switch Function | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Honeywell Sensing and Productivity Solutions | DPDT (DB/DM) | 5 ° | Screw Terminal | Roller Side Rotary | IP67 - Dust Tight Waterproof | 46 gf | Chassis Mount | 120 V | 120 V | 60 ° | 15 ° | 15 ° | On-Mom | 10 A 800 mA | -40 °C | 70 °C | |
 Honeywell Sensing and Productivity Solutions | SPDT (DB/DM) | 5 ° | Screw Terminal | Side Rotary - No Lever | IP67 - Dust Tight Waterproof | 46 gfm | Chassis Mount | 120 V | 120 V | 60 ° | 15 ° | 15 ° | On-Mom | 10 A 800 mA | -40 °C | 70 °C | Explosion Proof Stainless Steel |
