5164713 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

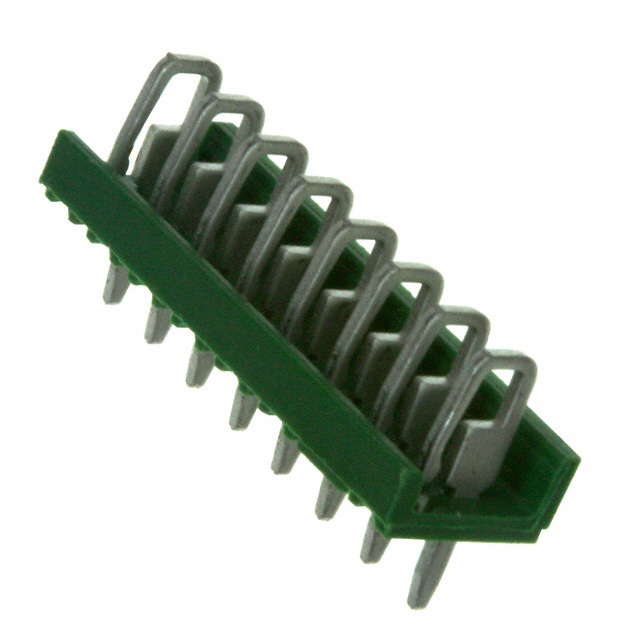

CONN HEADER VERT 8POS 2.5MM
| Part | Mounting Type | Pitch - Mating | Pitch - Mating | Insulation Material | Contact Type | Voltage Rating | Number of Positions | Overall Contact Length | Overall Contact Length | Operating Temperature [Max] | Operating Temperature [Min] | Style | Contact Length - Post [x] | Contact Length - Post [x] | Number of Positions Loaded | Number of Rows | Contact Finish - Post | Insulation Color | Connector Type | Termination | Contact Shape | Insulation Height | Insulation Height | Shrouding | Contact Material | Current Rating (Amps) | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Through Hole | 2.5 mm | 0.098 in | Polybutylene Terephthalate (PBT) Glass Filled | Male Pin Tab | 230 V | 8 | 9.09 mm 20 mm | 0.358 in 0.787 in | 85 °C | -40 C | Board to Cable/Wire | 0.126 " | 3.2 mm | All | 1 | Tin | Green | Header | Solder | Rectangular | 3 mm | 0.118 in | Unshrouded | Brass | 1.5 A | UL94 V-0 |
 TE Connectivity AMP Connectors | Through Hole | 2.5 mm | 0.098 in | Polybutylene Terephthalate (PBT) Glass Filled | Tab | 5 | 9.09 mm | 0.358 in | Board to Cable/Wire | 0.126 " | 3.2 mm | All | 1 | Tin | Green | Header | Solder | Rectangular | 3 mm | 0.118 in | Unshrouded | Brass | |||||
 TE Connectivity AMP Connectors | Through Hole | 2.5 mm | 0.098 in | Polybutylene Terephthalate (PBT) Glass Filled | Tab | 12 | 9.09 mm | 0.358 in | Board to Cable/Wire | 0.126 " | 3.2 mm | All | 1 | Tin | Green | Header | Solder | Rectangular | 3 mm | 0.118 in | Unshrouded | Brass | |||||

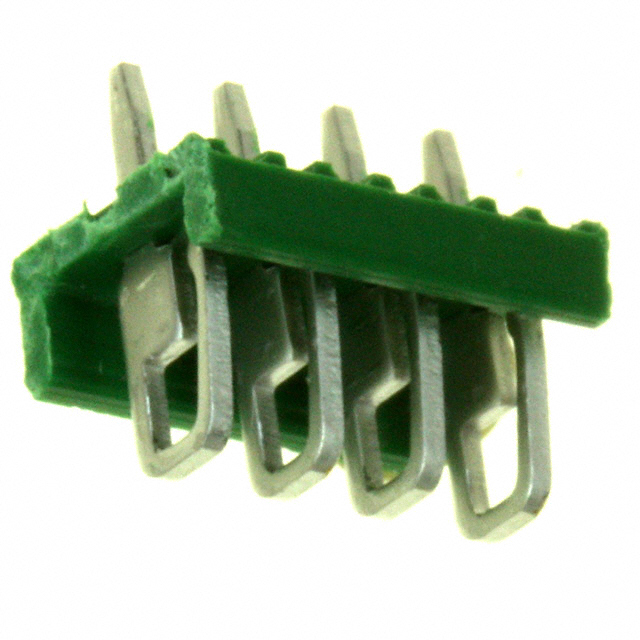

 TE Connectivity AMP Connectors | Through Hole | 2.5 mm | 0.098 in | Polybutylene Terephthalate (PBT) Glass Filled | Tab | 4 | 9.09 mm | 0.358 in | Board to Cable/Wire | 0.126 " | 3.2 mm | All | 1 | Tin | Green | Header | Solder | Rectangular | 3 mm | 0.118 in | Unshrouded | Brass |
