M80-5000000M5 Series
Manufacturer: Harwin Inc.
Beta
⌘K
6 POS. MALE SIL HORIZONTAL THROUGHBOARD CONN. JACKSCREWS ROHS COMPLIANT: YES
| Part | Material Flammability Rating | Contact Shape | Insulation Height [custom] | Insulation Height [custom] | Number of Positions Loaded | Shrouding | Features | Contact Length - Post | Contact Length - Post | Insulation Material | Termination | Current Rating (Amps) | Fastening Type | Contact Material | Contact Finish - Mating | Mounting Type | Pitch - Mating | Pitch - Mating | Connector Type | Style | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows | Number of Positions | Insulation Color | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Voltage Rating | Contact Type | Insulation Height | Insulation Height | Contact Length - Post [x] | Contact Length - Post [x] | Contact Finish - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | UL94 V-0 | Circular | 0.236 " | 6 mm | All | Shrouded - 4 Wall | Keying Slot Mating Flange Mounting Flange Mounting Hardware | 0.138 in | 3.5 mm | Polyphenylene Sulfide (PPS) Glass Filled | Solder | 40 A | Threaded | Copper Alloy | Gold | Right Angle Through Hole | 4 mm | 0.157 in | Header | Board to Cable/Wire | -55 C | 125 °C | 1 | 6 | Black | 0.76 Ám | 30 Áin | 800 V | Male Pin Power | |||||
 Harwin Inc. | UL94 V-0 | Circular | All | Shrouded - 4 Wall | Keying Slot Mating Flange Mounting Flange Mounting Hardware | 0.138 in | 3.5 mm | Polyphenylene Sulfide (PPS) Glass Filled | Solder | 40 A | Threaded | Copper Alloy | Gold | Right Angle Through Hole | 4 mm | 0.157 in | Header | Board to Cable/Wire | -55 C | 125 °C | 1 | 10 | Black | 0.76 Ám | 30 Áin | 800 V | Male Pin Power | 5.55 mm | 0.218 in | |||||
 Harwin Inc. | UL94 V-0 | Circular | 0.236 " | 6 mm | All | Shrouded - 4 Wall | Keying Slot Mating Flange Mounting Flange Mounting Hardware | Polyphenylene Sulfide (PPS) Glass Filled | Solder | 40 A | Threaded | Copper Alloy | Gold | Right Angle Through Hole | 4 mm | 0.157 in | Header | Board to Cable/Wire | -55 C | 150 °C | 1 | 6 | Black | 800 V | Male Pin Power | 0.197 " | 5 mm | Gold | ||||||
 Harwin Inc. | UL94 V-0 | Circular | All | Shrouded - 4 Wall | Keying Slot Mating Flange Mounting Flange Mounting Hardware | 0.138 in | 3.5 mm | Polyphenylene Sulfide (PPS) Glass Filled | Solder | 20 A | Threaded | Copper Alloy | Gold | Right Angle Through Hole | 4 mm | 0.157 in | Header | Board to Cable/Wire | -55 C | 125 °C | 1 | 8 | Black | 0.25 µm | 10 µin | 800 V | Male Pin Power | 5.55 mm | 0.218 in | |||||

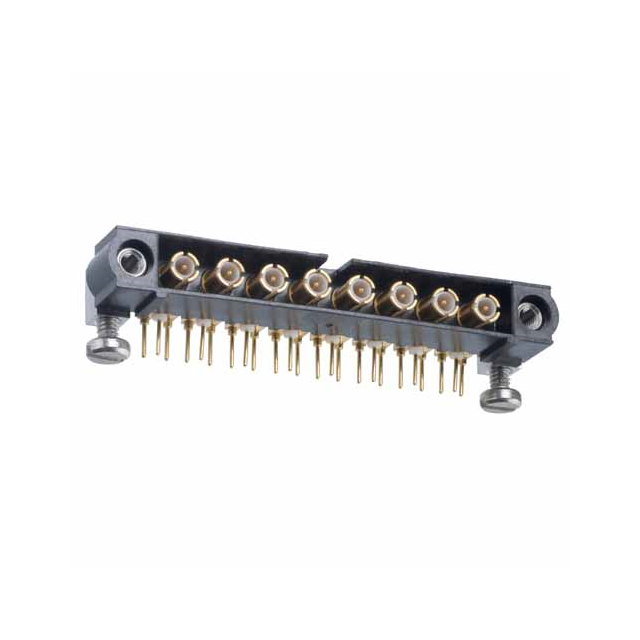

 Harwin Inc. | UL94 V-0 | Circular | 0.236 " | 6 mm | All | Shrouded - 4 Wall | Keying Slot Mating Flange Mounting Flange Mounting Hardware | 0.118 in | 3 mm | Polyphenylene Sulfide (PPS) Glass Filled | Solder | Threaded | Copper Alloy | Gold | Right Angle Through Hole | 4 mm | 0.157 in | Header | Board to Cable/Wire | -55 C | 125 °C | 1 | 8 | Black | 800 V | Coaxial Male Pin | Gold | |||||||
 Harwin Inc. | UL94 V-0 | Circular | All | Shrouded - 4 Wall | Keying Slot Mating Flange Mounting Flange Mounting Hardware | 0.138 in | 3.5 mm | Polyphenylene Sulfide (PPS) Glass Filled | Solder | 20 A | Threaded | Copper Alloy | Gold | Right Angle Through Hole | 4 mm | 0.157 in | Header | Board to Cable/Wire | -55 C | 125 °C | 1 | 10 | Black | 0.25 µm | 10 µin | 800 V | Male Pin Power | 5.55 mm | 0.218 in | |||||
 Harwin Inc. | UL94 V-0 | Circular | All | Shrouded - 4 Wall | Keying Slot Mating Flange Mounting Flange Mounting Hardware | 0.138 in | 3.5 mm | Polyphenylene Sulfide (PPS) Glass Filled | Solder | 40 A | Threaded | Copper Alloy | Gold | Right Angle Through Hole | 4 mm | 0.157 in | Header | Board to Cable/Wire | -55 C | 125 °C | 1 | 8 | Black | 0.76 Ám | 30 Áin | 800 V | Male Pin Power | 5.55 mm | 0.218 in | |||||
 Harwin Inc. | UL94 V-0 | Circular | All | Shrouded - 4 Wall | Keying Slot Mating Flange Mounting Flange Mounting Hardware | 0.138 in | 3.5 mm | Polyphenylene Sulfide (PPS) Glass Filled | Solder | 20 A | Threaded | Copper Alloy | Gold | Right Angle Through Hole | 4 mm | 0.157 in | Header | Board to Cable/Wire | -55 C | 125 °C | 1 | 4 | Black | 0.25 µm | 10 µin | 800 V | Male Pin Power | 5.55 mm | 0.218 in |
