HT 1/2 Series

Catalog

SPIRAL WRAP 0.438" X 100' NAT

Part	Environment Protection [custom]	Heat Protection	Material	Color	Diameter - Outside, Non-Expanded [diameter]	Diameter - Outside, Non-Expanded [diameter]	Material Flammability Rating	Features	Wall Thickness [custom]	Wall Thickness	Operating Temperature [Max]	Operating Temperature [Min]	Length	Length	Diameter - Inside, Non-Expanded [diameter]	Diameter - Inside, Non-Expanded [diameter]	Diameter - Inside, Expanded [diameter]	Diameter - Inside, Expanded [diameter]	Type Attributes	Type	Abrasion Protection	Wall Thickness	Diameter - Inside, Expanded [diameter]
MM Newman Corporation HT 1/2 T	UV Resistant	Fire Resistant	Polytetrafluoroethylene (PTFE)	Natural	12.7 mm	0.5 in	UL VW-1 UL94 V-0	Chemical Resistant Solvent Resistant	0.03 "	0.76 mm	260 °C	-268 °C	100 '	30.48 m	11.13 mm	0.438 "	76.2 mm	3 in	Harness	Spiral Wrap	Abrasion Resistant
MM Newman Corporation HT 1/2 R		Fire Resistant	Polyethylene (PE)	White	12.7 mm	0.5 in	UL1441 UL94 V-2	Chemical Resistant Solvent Resistant		1.57 mm	80 °C	-20 ░C	100 '	30.48 m	9.55 mm	0.376 in	4 in		Harness	Spiral Wrap	Abrasion Resistant	0.062 in	101.6 mm

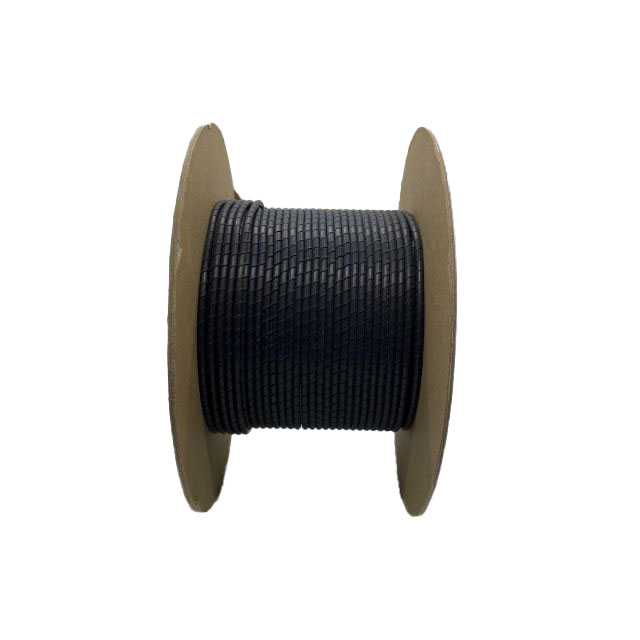

MM Newman Corporation HT 1/2 R-B		Fire Resistant	Polyethylene (PE)	Black	12.7 mm	0.5 in	UL1441 UL94 V-2	Chemical Resistant Solvent Resistant		1.57 mm	80 °C	-20 ░C	100 '	30.48 m	9.55 mm	0.376 in	4 in		Harness	Spiral Wrap	Abrasion Resistant	0.062 in	101.6 mm

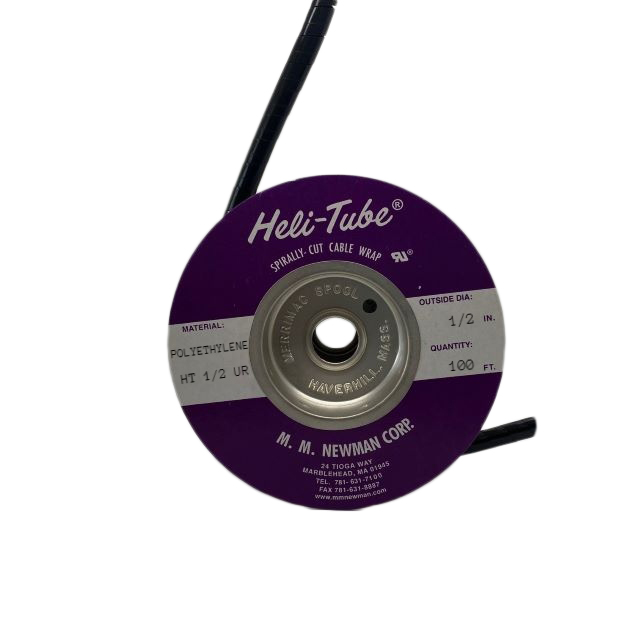

MM Newman Corporation HT 1/2 UR			Polyethylene (PE)	Black	12.7 mm	0.5 in		Chemical Resistant Solvent Resistant		1.57 mm	88 °C	-60 °C	100 '	30.48 m	9.55 mm	0.376 in	4 in		Harness	Spiral Wrap	Abrasion Resistant	0.062 in	101.6 mm

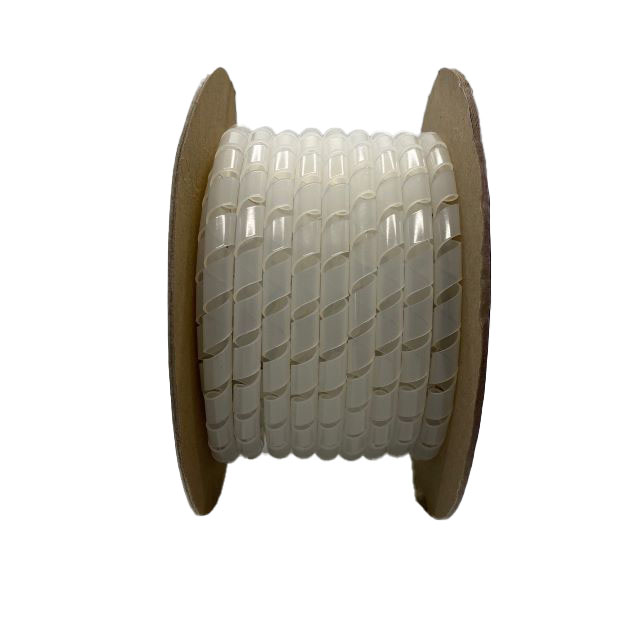

MM Newman Corporation HT 1/2 N			Nylon	Natural	12.7 mm	0.5 in		Chemical Resistant Self Extinguishing Solvent Resistant		0.89 mm	121 C	-40 C	100 '	30.48 m	10.92 mm	0.43 in	4 in		Harness	Spiral Wrap	Abrasion Resistant	0.035 in	101.6 mm
