MAXM17514 Series

Catalog

EVAL KIT FOR MAXM17514

Part	Supplied Contents	Outputs and Type	Outputs and Type	Board Type	Voltage - Input [Min]	Voltage - Input [Max]	Contents	Voltage - Output [Max]	Voltage - Output [Min]	Utilized IC / Part	Current - Output	Main Purpose	Frequency - Switching	Regulator Topology	Number of Outputs	Mounting Type	Features	Type	Voltage - Input (Max) [Max]	Package / Case	Voltage - Input (Min) [Min]	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Current - Output (Max) [Max]	Applications	Operating Temperature [Max]	Operating Temperature [Min]

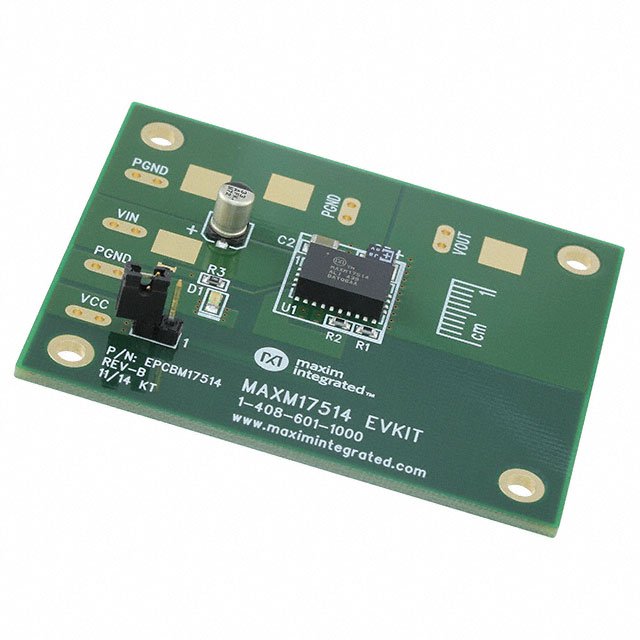

Analog Devices Inc./Maxim Integrated MAXM17514EVKIT#	Board(s)	1	1 Non-Isolated Output Non-Isolated	Fully Populated	2.4 V	5.5 V	Board(s)	3.6 V	0.75 V	MAXM17514	4 A	DC/DC Step Down	1 MHz	Buck
Analog Devices Inc./Maxim Integrated MAXM17514ALI+															1	Surface Mount	OCP OTP UVLO	Non-Isolated PoL Module	5.5 V	29-SMD Module Exposed Pad	2.4 V	3.6 V	0.75 V	7.5 mm	0.3 "	10 mm	0.39 "	1.9 mm	0.07 in	4 A	ITE (Commercial)	125 °C	-40 C
Analog Devices Inc./Maxim Integrated MAXM17514ALI+T															1	Surface Mount	OCP OTP UVLO	Non-Isolated PoL Module	5.5 V	29-SMD Module Exposed Pad	2.4 V	3.6 V	0.75 V	7.5 mm	0.3 "	10 mm	0.39 "	1.9 mm	0.07 in	4 A	ITE (Commercial)	125 °C	-40 C
