5489/11C Series
Manufacturer: ALPHA WIRE
Beta
⌘K

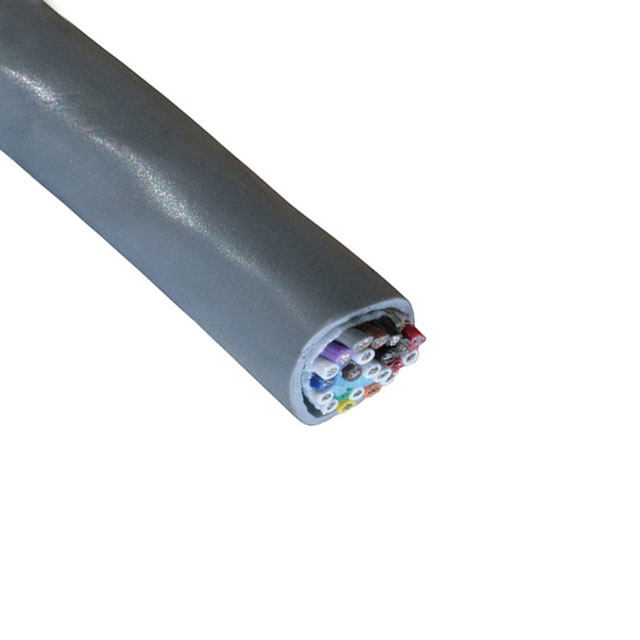

MULT-PR 22COND 22AWG 1000=1000'
| Part | Shield Coverage | Shield Material | Voltage | Conductor Strand [custom] | Conductor Strand [custom] | Jacket Color | Conductor Material | Jacket (Insulation) Material | Shield Type | Number of Conductors | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Wire Gauge | Ratings | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Features | Usage | Conductor Insulation | Operating Temperature [Min] | Operating Temperature [Max] | Cable Type | Length | Length | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 100 % | Aluminum | 300 VDC | 28 AWG | 7 | Slate | Copper Tinned | Poly-Vinyl Chloride (PVC) | Foil | 22 | 0.813 mm | 0.032 in | 22 AWG | ISO 10993 UL Style 2464 | 10.16 mm | 0.4 in | Biological Compatibility Drain Wire Rip Cord | Communication Control | Poly-Vinyl Chloride (PVC) | -35 °C | 105 ░C | Multi-Pair | ||||
 ALPHA WIRE | 100 % | Aluminum | 300 VDC | 28 AWG | 7 | Black | Copper Tinned | Poly-Vinyl Chloride (PVC) | Foil | 22 | 0.813 mm | 0.032 in | 22 AWG | ISO 10993 UL Style 2464 | 10.16 mm | 0.4 in | Biological Compatibility Drain Wire Rip Cord | Communication Control | Poly-Vinyl Chloride (PVC) | -35 °C | 105 ░C | Multi-Pair | 304.8 m | 1000 ft | ||
