HS2L7F Series
Manufacturer: Switchcraft Inc.
Beta
⌘K

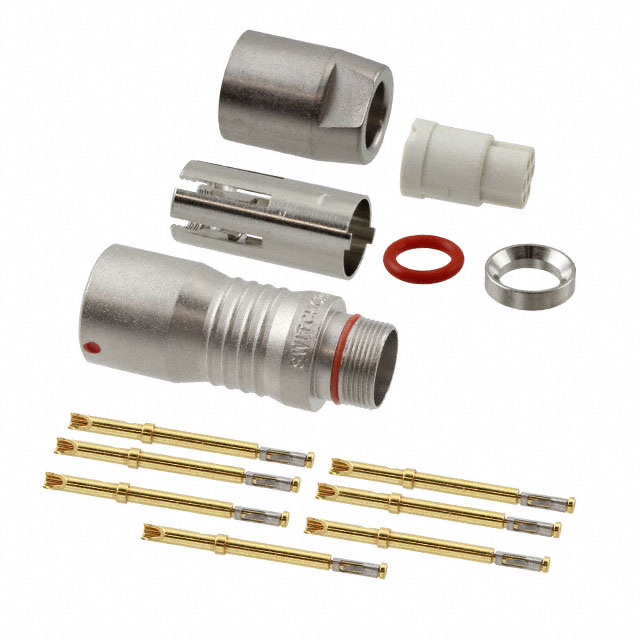

CONN RCPT FMALE 7POS GOLD CRIMP
| Part | Termination | Orientation | Primary Material | Color | Fastening Type | Mounting Type | Material Flammability Rating | Voltage Rating | Shell Material | Contact Finish - Mating | Shielding | Operating Temperature [Max] | Operating Temperature [Min] | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Number of Positions | Applications | Insert Material | Ingress Protection | Contact Material | Shell Finish | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Switchcraft Inc. | Crimp Solder Cup | Keyed | Metal | Silver | Push-Pull | Free Hanging (In-Line) | UL94 HF-1 | 30 VAC | Copper Alloy | Gold | Shielded | 135 °C | -40 °C | 5.49 mm | 4.57 mm | 0.18 in | 0.216 in | 7 | Agriculture Audio General Medical Testing Equipment & Measurement | Liquid Crystal Polymer (LCP) | IP66 IP67 IP68 | Copper Alloy | Electroless Nickel | Receptacle Female Sockets |
