NPPN201 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

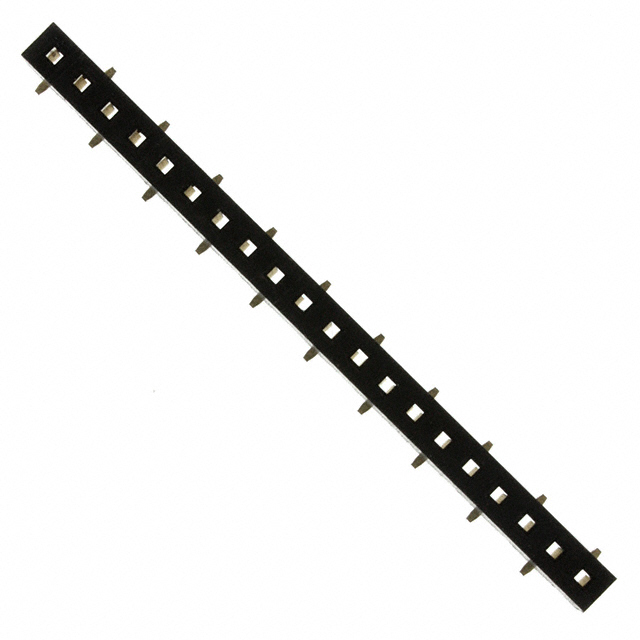

CONN HDR 20P 0.079 GOLD PCB R/A
| Part | Contact Material | Insulation Material | Contact Finish Thickness - Post | Contact Shape | Contact Length - Post [x] | Contact Length - Post [x] | Current Rating (Amps) | Material Flammability Rating | Number of Positions Loaded | Contact Type | Termination | Fastening Type | Connector Type | Contact Finish - Post | Contact Finish Thickness - Mating | Insulation Color | Number of Rows | Mounting Type | Contact Finish - Mating | Number of Positions | Pitch - Mating | Pitch - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Height [z] | Insulation Height [z] | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Phosphor Bronze | Nylon 6T Polyamide (PA6T) | Flash | Square | 0.122 in | 3.1 mm | 2 A | UL94 V-0 | All | Female Socket | Solder | Push-Pull | Header | Gold | Flash | Black | 1 | Right Angle Through Hole | Gold | 20 | 0.079 " | 2 mm | -40 C | 105 ░C | |||
 Sullins Connector Solutions | Phosphor Bronze | Nylon 6T Polyamide (PA6T) | Flash | Square | 2 A | UL94 V-0 | All | Female Socket | Solder | Push-Pull | Header | Gold | Flash | Black | 1 | Surface Mount | Gold | 20 | 0.079 " | 2 mm | -40 C | 105 ░C | 0.181 in | 4.6 mm | 150 VDC |
