HCPL-M701 Series
Manufacturer: Broadcom Limited
Beta
⌘K

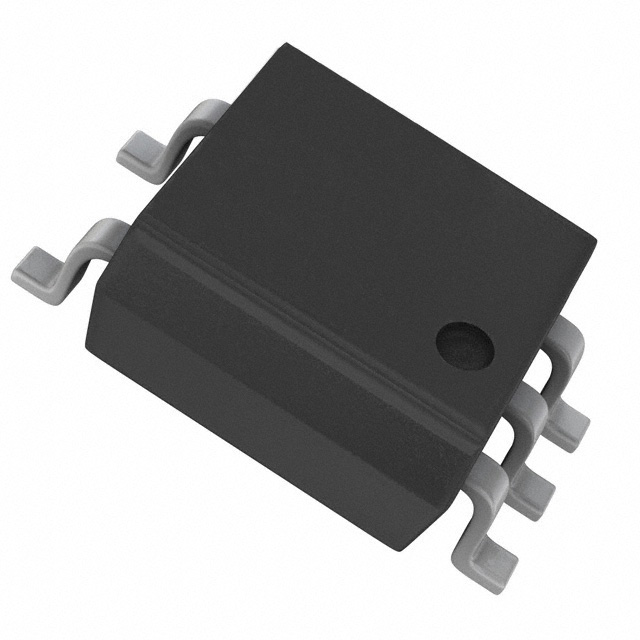

OPTOISOLATOR 3.75KV 1CH DARL
| Part | Number of Channels [custom] | Current Transfer Ratio (Min) [Min] | Current - Output / Channel | Voltage - Output (Max) [Max] | Package / Case | Package / Case | Current - DC Forward (If) (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Turn On / Turn Off Time (Typ) | Voltage - Forward (Vf) (Typ) | Mounting Type | Current Transfer Ratio (Max) | Output Type | Voltage - Isolation | Input Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Broadcom Limited | 1 | 500 % | 60 mA | 18 V | 6-SOIC | 0.173 " 4.4 mm Width 5 Leads | 20 mA | 70 °C | 0 °C | 1 µs 500 ns | 1.4 V | Surface Mount | 3500 % | Darlington | 3750 Vrms | DC | |
 Broadcom Limited | 1 | 500 % | 60 mA | 18 V | 6-SOIC | 0.173 " 4.4 mm Width 5 Leads | 20 mA | 85 °C | -40 C | 1 µs 500 ns | 1.4 V | Surface Mount | 2600 % | Darlington | 3750 Vrms | DC | 5-SO |
