MP5090 Series

Catalog

POWER LOAD DISTRIBUTION SWITCH IC, HIGH SIDE, 2 CHANNELS, 5.5 V, 3 A, 24 MILLIOHMS, 8 PINS, TQFN

Part	Ratio - Input:Output	Number of Outputs	Interface	Current - Output (Max) [Max]	Input Type	Features	Voltage - Load [Max]	Voltage - Load [Min]	Switch Type	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Fault Protection	Rds On (Typ)	Mounting Type	Output Type	Package / Case	Output Configuration	Supplier Device Package [y]	Supplier Device Package [x]
Monolithic Power Systems Inc. MP5090GQHT-Z	1:1	2	On/Off	3 A	Non-Inverting	Load Discharge Slew Rate Controlled	5.5 V	0.5 V	General Purpose	8-TQFN (1.5x2)	-40 C	125 °C	0.5 V	5.5 V	Short-Circuit Thermal Shutdown UVLO	20 mOhm	Surface Mount	P-Channel	8-WFDFN	High Side

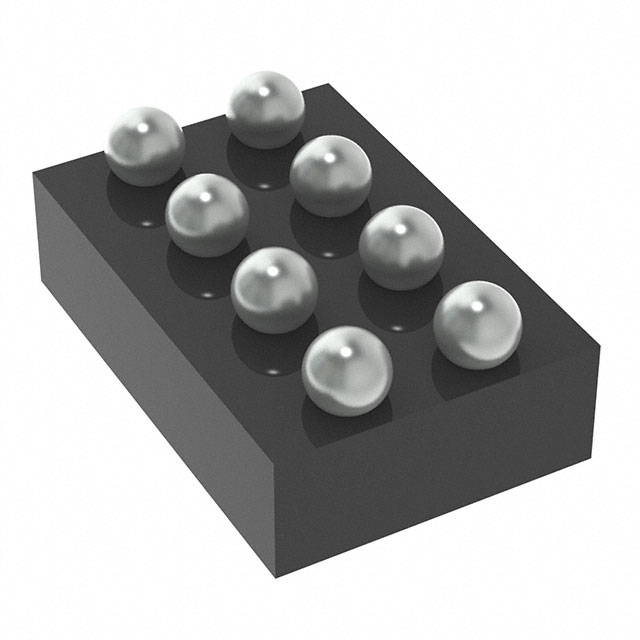

Monolithic Power Systems Inc. MP5090GC-P	1:1	2	On/Off	2 A	Non-Inverting	Load Discharge Slew Rate Controlled	5.5 V	0.5 V	General Purpose	8-CSP	-40 C	125 °C	0.5 V	5.5 V	Short-Circuit Thermal Shutdown UVLO	30 mOhm	Surface Mount	P-Channel	8-UFBGA CSPBGA	High Side	1.6	1.05
Monolithic Power Systems Inc. MP5090GC-Z	1:1	2	On/Off	2 A	Non-Inverting	Load Discharge Slew Rate Controlled	5.5 V	0.5 V	General Purpose	8-CSP	-40 C	125 °C	0.5 V	5.5 V	Short-Circuit Thermal Shutdown UVLO	30 mOhm	Surface Mount	P-Channel	8-UFBGA CSPBGA	High Side	1.6	1.05
Monolithic Power Systems Inc. MP5090GQHT-P	1:1	2	On/Off	3 A	Non-Inverting	Load Discharge Slew Rate Controlled	5.5 V	0.5 V	General Purpose	8-TQFN (1.5x2)	-40 C	125 °C	0.5 V	5.5 V	Short-Circuit Thermal Shutdown UVLO	20 mOhm	Surface Mount	P-Channel	8-WFDFN	High Side
